Castor HPH35WC080N2U6B32


ø80mm, polyamide (PA) wheel center, polyurethane (PU) tread, ball bearing, 130kg

Compare

Add 50,00 € more to get free shipping!

Extra Features

Stock orders 2-3 days delivery
Back orders 7-14 days delivery
Free Shipping from 50EUR

Description

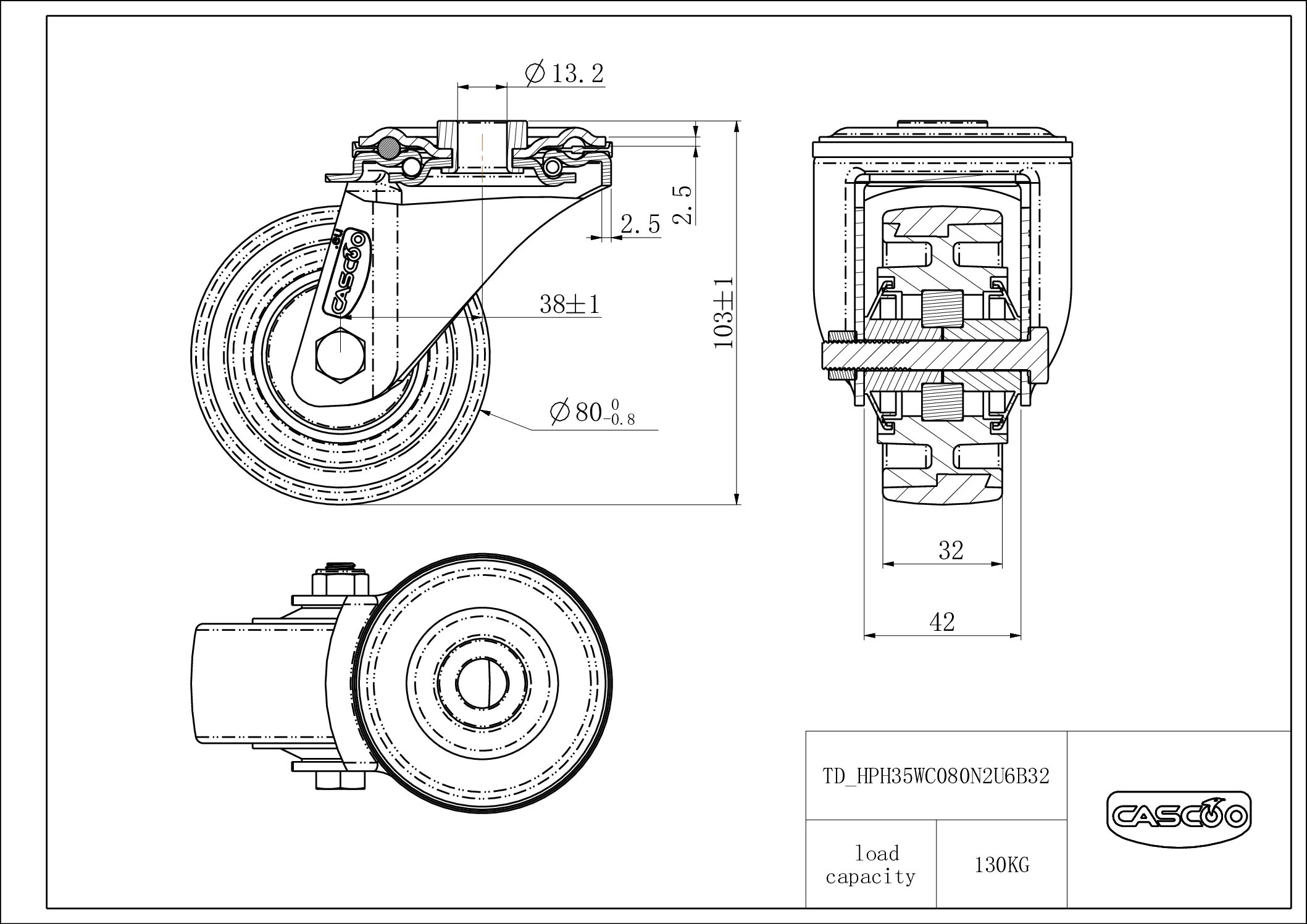

Galvanized sheet steel fork with a ball bearing, fastening by bolt, hole ø13mm, fork with material thickness 2.50mm (fastening) and 2.50mm (fork), inner part of wheel made of polyamide, tread made of thermoplastic polyurethane 95° Shore A, width of the wheel center 40mm, ball bearing, nylon bearing guard.

Additional information

Product SKU	HPH35WC080N2U6B32
Standard Compliance	DIN EN 12532
Series	N2U6
Fastening	Bolt fastening
Material of the Wheel	polyamide (PA) wheel center
Tread	polyurethane (PU) tread
Temperature range	-40°C to +80°C
Wheel Diameter	80mm
Load Capacity	130kg
Total Hight	104mm
Width of Tread	32mm
wheel hub Width	40mm
Offset	40mm
Fastening Bolt Hole Diameter	13mm
Wheel Bolt Size	M8
Bushing Diameter	8mm
Weight	0.5kg
Wheel Bearing	ball bearing
Wheel Color	Gray and Red
Rubber Shore	95° Shore A
