Castor TPP58WC200R4F1R0N
Filters Sort results
Reset Apply
back brake, ø200mm, polyamide (PA) wheel center, elastic tread, roller bearing,  |
42,58 € incl. 22% VAT
34,90 € excl. 22% VAT
Available on backorder
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description

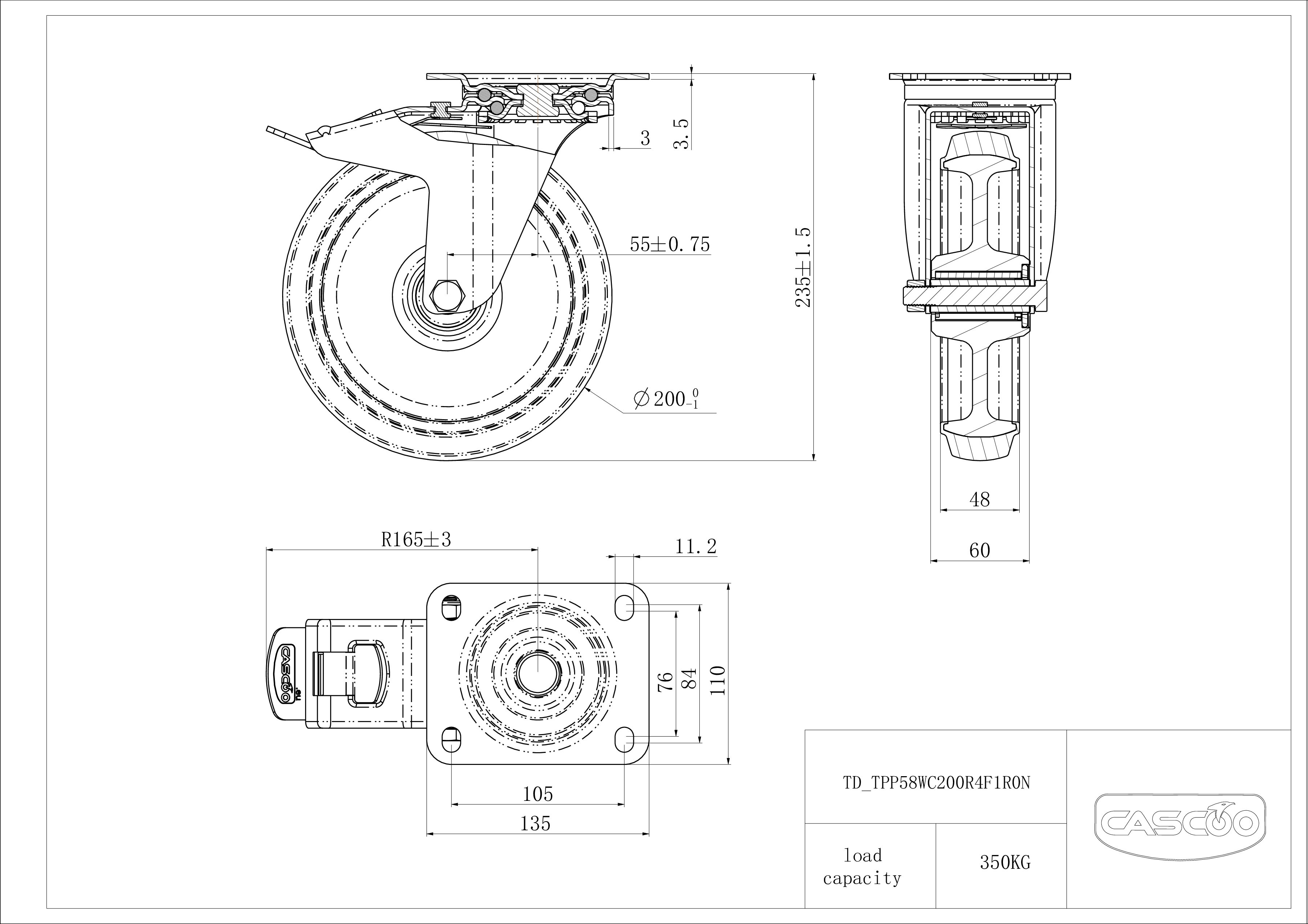

Galvanized sheet steel fork with a ball bearing, fastening by plate with hole spacing 105×84/76mm, fork with material thickness 3.50mm (fastening) and 3.00mm (fork), inner part of wheel made of polyamide and tread made of elastic 75° Shore A, width of the wheel center 59mm, roller bearing.
Additional information
| Product SKU | TPP58WC200R4F1R0N |
|---|---|
| Standard Compliance | DIN EN 12532 |
| Series | R4F1 |
| Fastening | |
| Brake and Direction | back brake |
| Material of the Wheel | polyamide (PA) wheel center |
| Tread | |
| Temperature range | -20°C to +80°C |
| Wheel Diameter | 200mm |
| Load Capacity | 350kg |
| Total Hight | 235mm |
| Width of Tread | 46mm |
| wheel hub Width | 59mm |
| Offset | 55mm |
| Dimension of Plate | 135x110mm |
| Hole Spacing of the Plate | 105×84/76mm |
| Swivel Radius | 165mm |
| Wheel Bolt Size | M12 |
| Bushing Diameter | 20mm |
| Weight | 2.76kg |
| Wheel Bearing | roller bearing |
| Wheel Color | Black and Blue |
| Rubber Shore | 75° Shore A |
