Castor TPP21WC100R4E1B34
Filters Sort results
Reset Apply
back brake, ø100mm, polyamide (PA) wheel center, elastic tread, ball bearing,  |
14,64 € incl. 22% VAT
12,00 € excl. 22% VAT
Available on backorder
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description

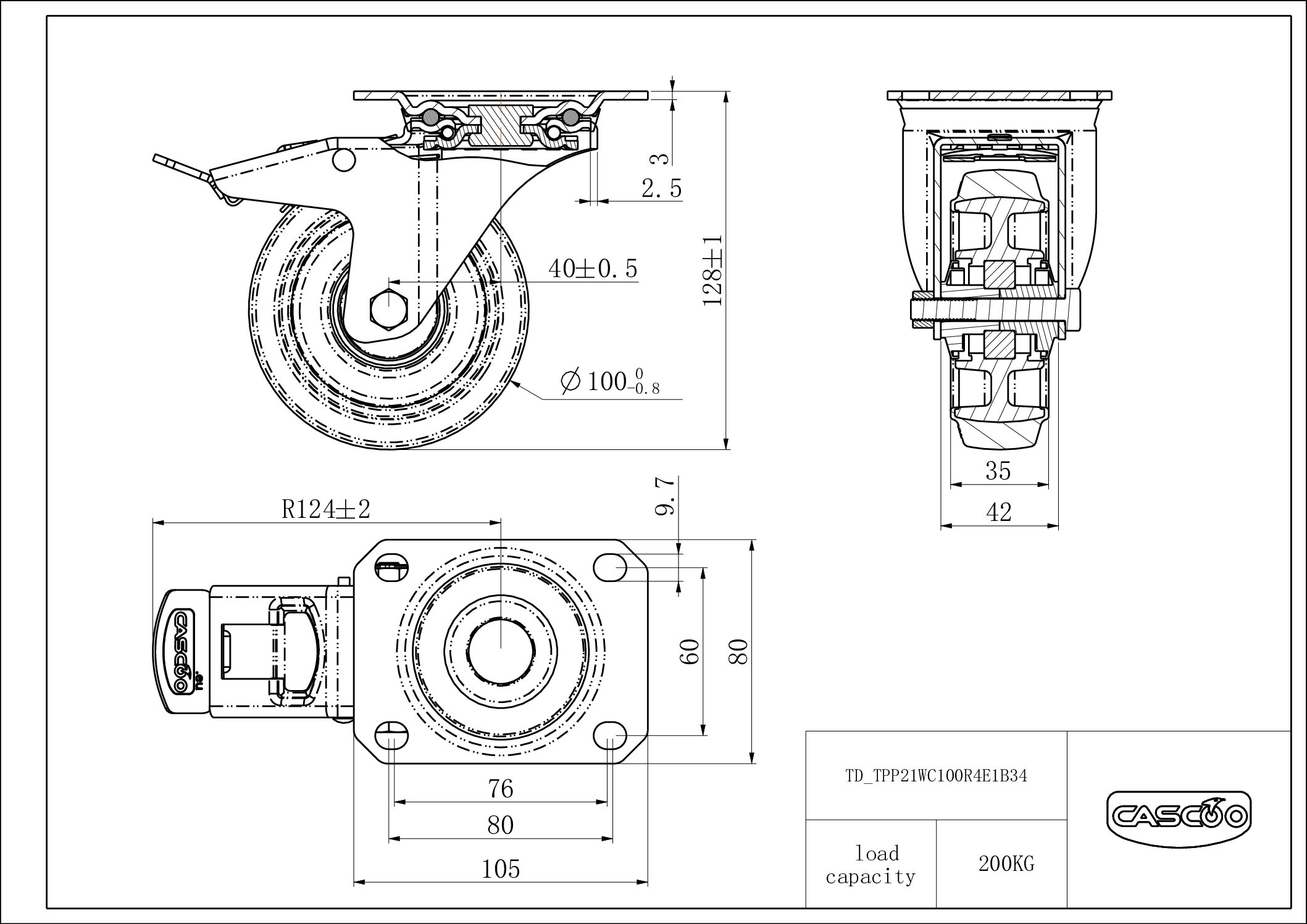

Galvanized sheet steel fork with a ball bearing, fastening by plate with hole spacing 80/77x60mm, fork with material thickness 3.00mm (fastening) and 2.50mm (fork), inner part of wheel made of polyamide and tread made of elastic 65° Shore A, width of the wheel center 40mm, ball bearing, nylon bearing guard.
Additional information
| Product SKU | TPP21WC100R4E1B34 |
|---|---|
| Standard Compliance | DIN EN 12532 |
| Series | R4E1 |
| Fastening | |
| Brake and Direction | back brake |
| Material of the Wheel | polyamide (PA) wheel center |
| Tread | |
| Temperature range | -20°C to +80°C |
| Wheel Diameter | 100mm |
| Load Capacity | 200kg |
| Total Hight | 128mm |
| Width of Tread | 35mm |
| wheel hub Width | 40mm |
| Offset | 40mm |
| Dimension of Plate | 105x80mm |
| Hole Spacing of the Plate | 80/77x60mm |
| Swivel Radius | 127mm |
| Wheel Bolt Size | M8 |
| Bushing Diameter | 8mm |
| Weight | 0.92kg |
| Wheel Bearing | ball bearing |
| Wheel Color | Black and Blue |
| Rubber Shore | 65° Shore A |
