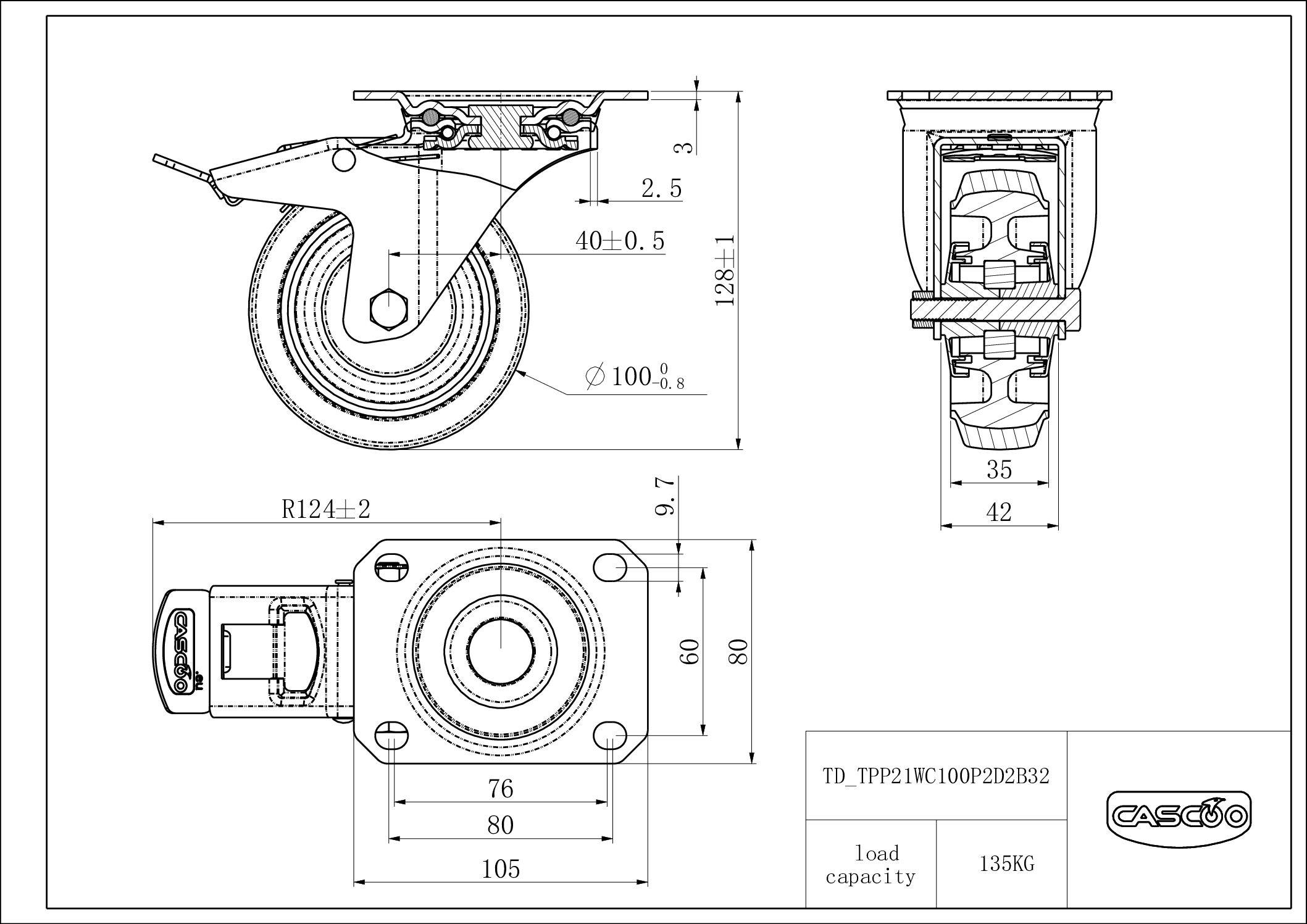

Castor TPP21WC100P2D2B32
Filters Sort results
Reset Apply
back brake, ø100mm, polypropylene (PP) wheel center, thermoplastic rubber tread, ball bearing,  |
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description
Galvanized sheet steel fork with a ball bearing, fastening by plate with hole spacing 80/77x60mm, fork with material thickness 3.00mm (fastening) and 2.50mm (fork), inner part of wheel made of polypropylene, tread made of thermoplastic rubber 65 – 75° Shore A, width of the wheel center 40mm, ball bearing, nylon bearing guard.
Additional information
| Product SKU | TPP21WC100P2D2B32 |
|---|---|
| Standard Compliance | DIN EN 12532 |
| Series | P2D2 |
| Fastening | |
| Brake and Direction | back brake |
| Material of the Wheel | polypropylene (PP) wheel center |
| Tread | |
| Temperature range | -20°C to +60°C |
| Wheel Diameter | 100mm |
| Load Capacity | 135kg |
| Total Hight | 128mm |
| Width of Tread | 35mm |
| wheel hub Width | 40mm |
| Offset | 40mm |
| Dimension of Plate | 105x80mm |
| Hole Spacing of the Plate | 80/77x60mm |
| Swivel Radius | 127mm |
| Wheel Bolt Size | M8 |
| Bushing Diameter | 8mm |
| Weight | 0.88kg |
| Wheel Bearing | ball bearing |
| Wheel Color | Grey |
| Rubber Shore | 70° Shore A |
