Castor THPKKWC125DAU5D0N
Filters Sort results
Reset Apply
back brake, ø125mm, aluminum wheel center, polyurethane (PU) tread, double ball bearing,  |
49,72 € incl. 22% VAT
40,75 € excl. 22% VAT
Available on backorder
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description

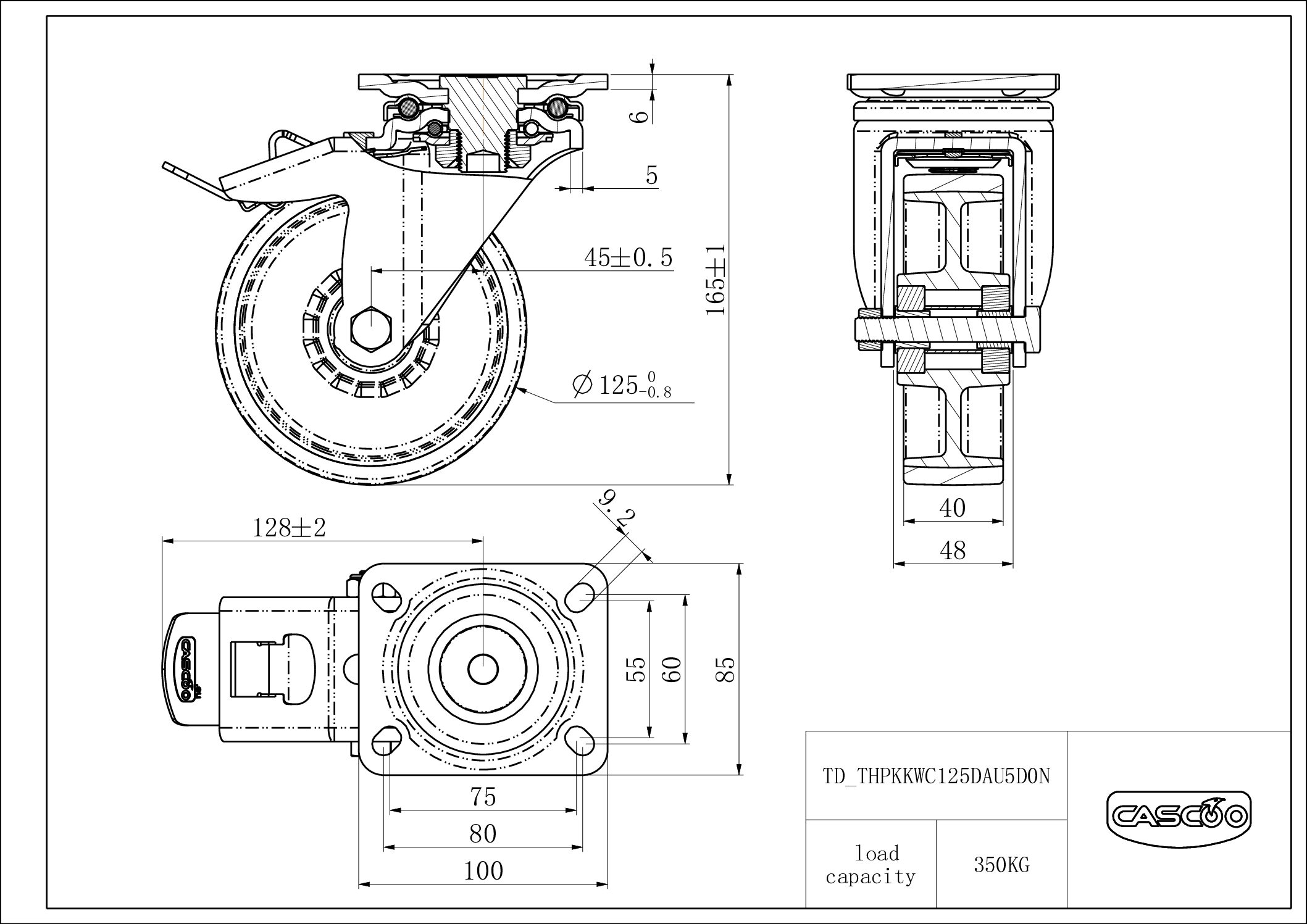

Galvanized sheet steel fork with a ball bearing, fastening by plate with hole spacing 80/75×60/55/48mm, fork with material thickness 6.00mm (fastening) and 5.00mm (fork), inner part of wheel made of aluminum tread made of polyurethane 95° Shore A, width of the wheel center 47mm, double ball bearing.
Additional information
| Product SKU | THPKKWC125DAU5D0N |
|---|---|
| Standard Compliance | DIN EN 12533 |
| Series | DAU5 |
| Fastening | |
| Brake and Direction | back brake |
| Material of the Wheel | aluminum wheel center |
| Tread | |
| Temperature range | -20°C to +60°C |
| Wheel Diameter | 125mm |
| Load Capacity | 350kg |
| Total Hight | 165mm |
| Width of Tread | 40mm |
| wheel hub Width | 47mm |
| Offset | 45mm |
| Dimension of Plate | 100x85mm |
| Hole Spacing of the Plate | 80/75×60/55/48mm |
| Swivel Radius | 107.5mm |
| Wheel Bolt Size | M10 |
| Bushing Diameter | 15mm |
| Weight | 2.22kg |
| Wheel Bearing | double ball bearing |
| Wheel Color | Brown |
| Rubber Shore | 95° Shore A |
