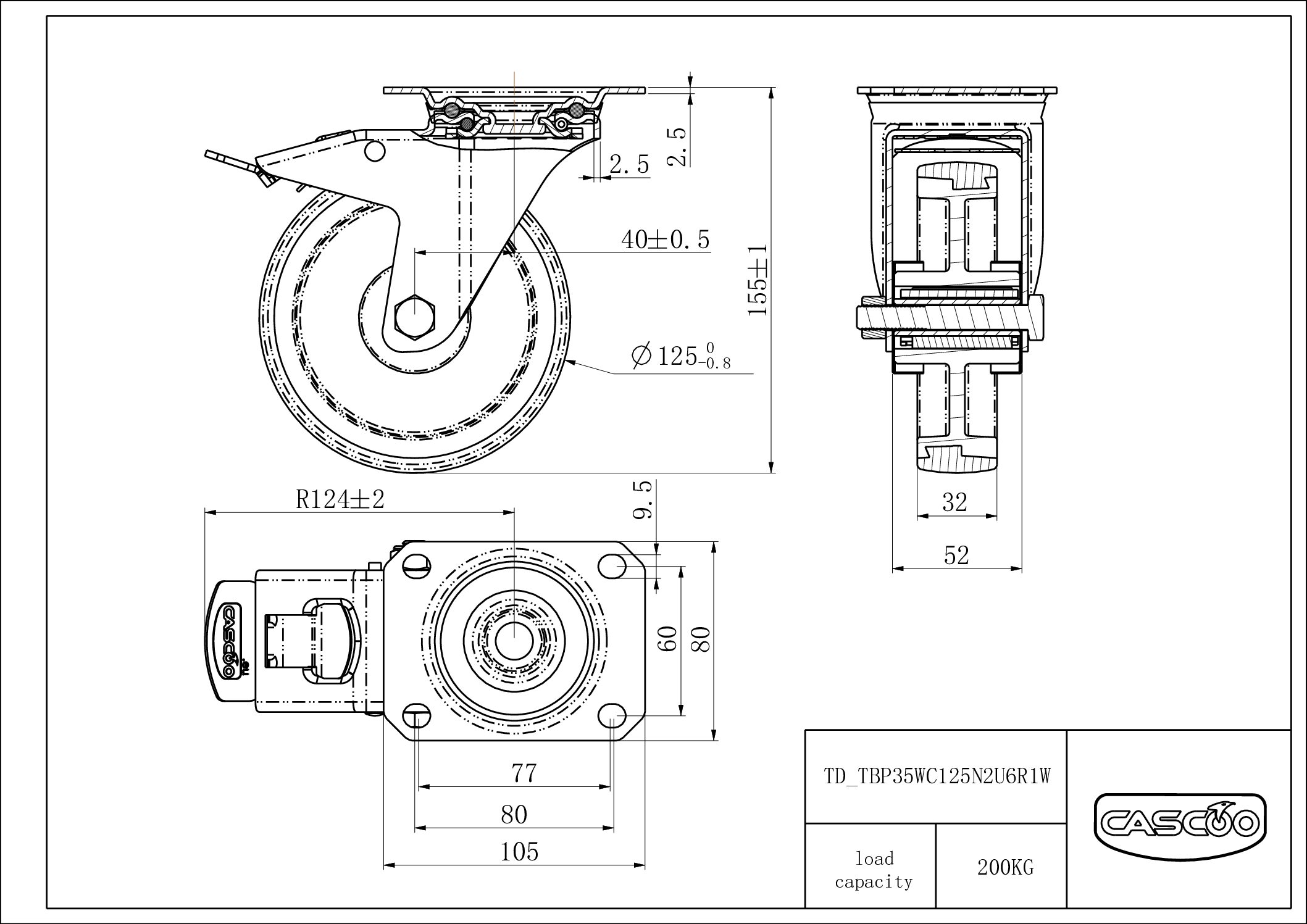

Castor TBP35WC125N2U6R1W
Filters Sort results
Reset Apply
back brake, ø125mm, polyamide (PA) wheel center, polyurethane (PU) tread, roller bearing,  |
15,86 € incl. 22% VAT
13,00 € excl. 22% VAT
Available on backorder
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description
Galvanized sheet steel fork with a ball bearing, fastening by plate with hole spacing 80/77x60mm, fork with material thickness 2.50mm (fastening) and 2.50mm (fork), inner part of wheel made of polyamide, tread made of thermoplastic polyurethane 95° Shore A, width of the wheel center 50mm, roller bearing, metal bearing guard.
Additional information
| Product SKU | TBP35WC125N2U6R1W |
|---|---|
| Standard Compliance | DIN EN 12532 |
| Series | N2U6 |
| Fastening | |
| Brake and Direction | back brake |
| Material of the Wheel | polyamide (PA) wheel center |
| Tread | |
| Temperature range | -40°C to +80°C |
| Wheel Diameter | 125mm |
| Load Capacity | 200kg |
| Total Hight | 155mm |
| Width of Tread | 32mm |
| wheel hub Width | 50mm |
| Offset | 45mm |
| Dimension of Plate | 105x80mm |
| Hole Spacing of the Plate | 80/77x60mm |
| Swivel Radius | 127mm |
| Wheel Bolt Size | M10 |
| Bushing Diameter | 15mm |
| Weight | 1.05kg |
| Wheel Bearing | roller bearing |
| Wheel Color | Gray and Red |
| Rubber Shore | 95° Shore A |
