Castor SHP5MWC200Z4U5D34

84,24  incl. 22% VAT
69,05  excl. 22% VAT

Available on backorder

Castor SHP5MWC200Z4U5D34

Filters Sort results
Reset Apply
swivel without brake,
ø200mm,
polyamide (PA) wheel center,
polyurethane (PU) tread,
double ball bearing,
dyn. load capacity
500kg

84,24  incl. 22% VAT
69,05  excl. 22% VAT

Available on backorder

Add 50,00  more to get free shipping!
Extra Features
  • Stock orders 2-3 days delivery
  • Back orders 7-14 days delivery
  • Free Shipping from 50EUR

Description

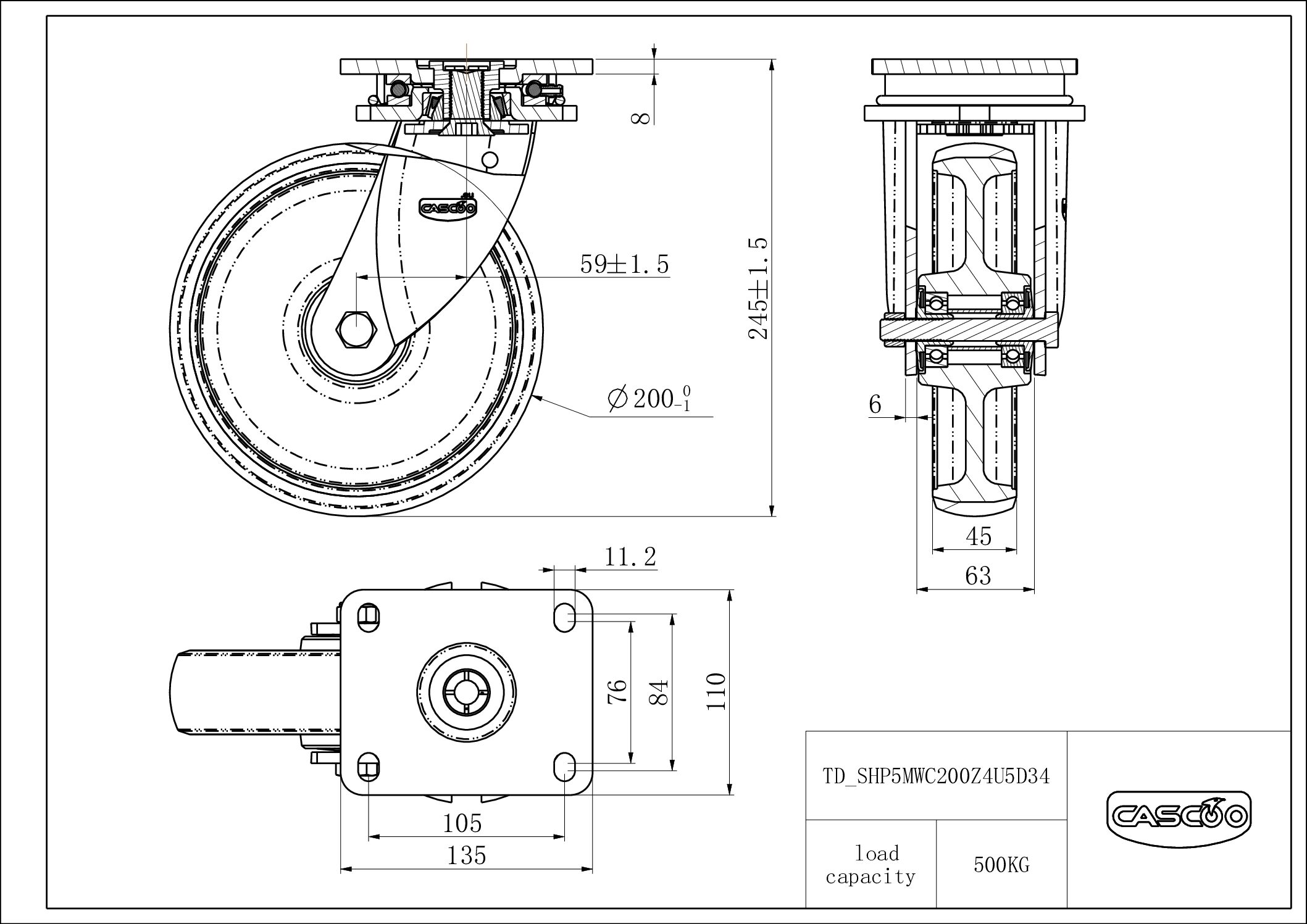

Galvanized sheet steel fork with a ball bearing, fastening by plate with hole spacing 105×84/76mm, fork with material thickness 8.00mm (fastening) and 6.00mm (fork), inner part of wheel made of polyamide , tread made of thermoplastic polyurethane 93 – 95° Shore A, width of the wheel center 60mm, double ball bearing, nylon bearing guard.

Additional information

Product SKU

SHP5MWC200Z4U5D34

Standard Compliance

DIN EN 12533

Series

Z4U5

Fastening

Brake and Direction

swivel without brake

Material of the Wheel

polyamide (PA) wheel center

Tread

Temperature range

-20°C to +80°C

Wheel Diameter

200mm

Load Capacity

500kg

Total Hight

245mm

Width of Tread

45mm

wheel hub Width

60mm

Offset

59mm

Dimension of Plate

135x110mm

Hole Spacing of the Plate

105×84/76mm

Wheel Bolt Size

M12

Bushing Diameter

12mm

Weight

4.08kg

Wheel Bearing

double ball bearing

Wheel Color

Black and Brown

Rubber Shore

94° Shore A
