Castor SDPE1C0075N4N4P0N
Filters Sort results
Reset Apply
swivel without brake, ø75mm, polyamide (PA) wheel center, polyamide (PA) tread, plain bearing,  |
8,68 € incl. 24% VAT
7,00 € excl. 24% VAT
Available on backorder
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description

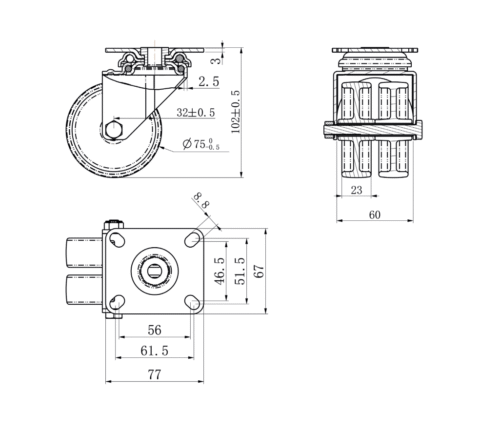

Galvanized sheet steel fork with a ball bearing, fastening by plate with hole spacing 61.5/56×51.5/46.5mm, fork with material thickness 3.00mm (fastening) and 2.50mm (fork), wheel made of polyamide, width of the wheel center 56mm, plain bearing.
Additional information
| Dimensions | 6625864309 cm |
|---|---|
| Product SKU | SDPE1C0075N4N4P0N |
| Standard Compliance | DIN EN 12530 |
| Series | N4N4 |
| Fastening | |
| Brake and Direction | swivel without brake |
| Material of the Wheel | |
| Tread | |
| Temperature range | -20°C to +60°C |
| Wheel Diameter | 75mm |
| Load Capacity | 70kg |
| Total Hight | 100mm |
| Width of Tread | 23mm |
| wheel hub Width | 56mm |
| Offset | 32mm |
| Dimension of Plate | 77x67mm |
| Hole Spacing of the Plate | 61.5/56×51.5/46.5mm |
| Wheel Bolt Size | M8 |
| Bushing Diameter | 10mm |
| Weight | 0.51kg |
| Wheel Bearing | plain bearing |
| Wheel Color | Black |
