Castor HBH35WC080R4F1R0N
Filters Sort results
Reset Apply
ø80mm, polyamide (PA) wheel center, elastic tread, roller bearing,  |
8,54 € incl. 22% VAT
7,00 € excl. 22% VAT
Available on backorder
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description

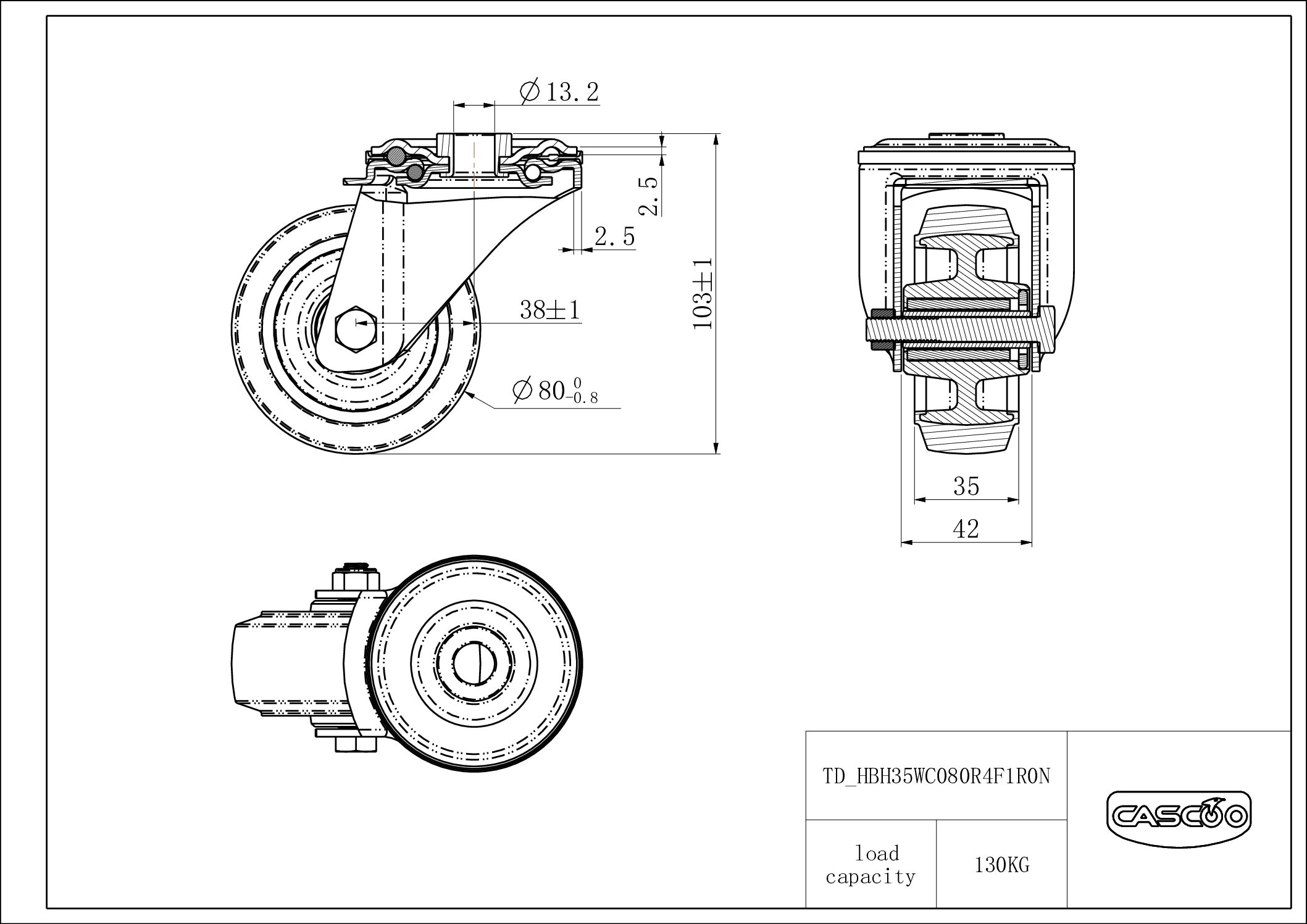

Galvanized sheet steel fork with a ball bearing, fastening by bolt, hole ø13mm, fork with material thickness 2.50mm (fastening) and 2.50mm (fork), inner part of wheel made of polyamide and tread made of elastic 75° Shore A, width of the wheel center 40mm, roller bearing.
Additional information
| Product SKU | HBH35WC080R4F1R0N |
|---|---|
| Standard Compliance | DIN EN 12532 |
| Series | R4F1 |
| Fastening | |
| Material of the Wheel | polyamide (PA) wheel center |
| Tread | |
| Temperature range | -20°C to +80°C |
| Wheel Diameter | 80mm |
| Load Capacity | 130kg |
| Total Hight | 104mm |
| Width of Tread | 35mm |
| wheel hub Width | 40mm |
| Offset | 40mm |
| Fastening Bolt Hole Diameter | 13mm |
| Wheel Bolt Size | M8 |
| Bushing Diameter | 12mm |
| Weight | 0.51kg |
| Wheel Bearing | roller bearing |
| Wheel Color | Black and Blue |
| Rubber Shore | 75° Shore A |
