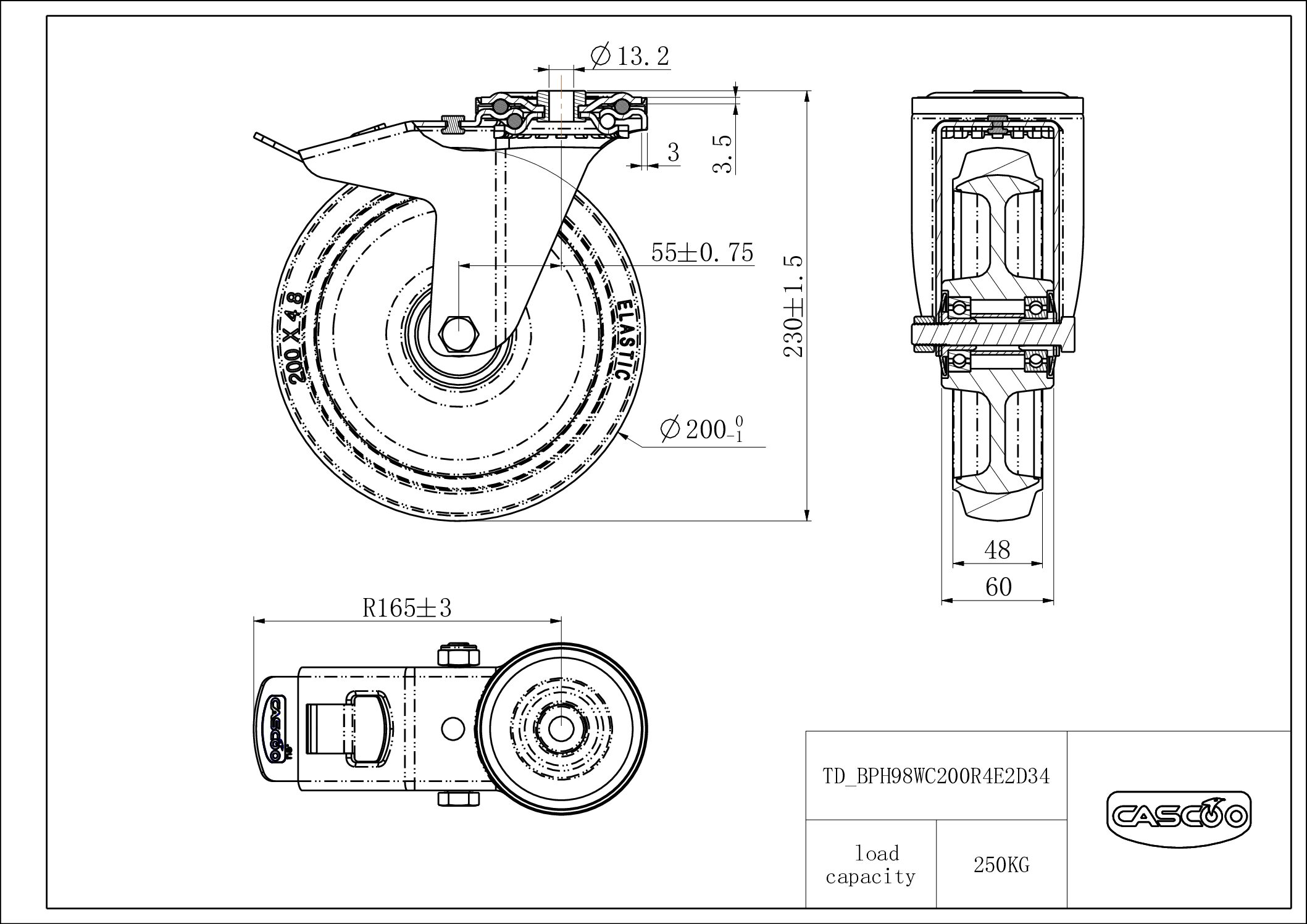

Castor BPH98WC200R4E2D34
Filters Sort results
Reset Apply
back brake, ø200mm, polyamide (PA) wheel center, elastic tread, double ball bearing,  |
45,51 € incl. 22% VAT
37,30 € excl. 22% VAT
Available on backorder
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description
Galvanized sheet steel fork with a ball bearing, fastening by bolt, hole ø13mm, fork with material thickness 3.50mm (fastening) and 3.00mm (fork), inner part of wheel made of polyamide and tread made of elastic 65° Shore A, width of the wheel center 59mm, double ball bearing, nylon bearing guard.
Additional information
| Product SKU | BPH98WC200R4E2D34 |
|---|---|
| Standard Compliance | DIN EN 12532 |
| Series | R4E2 |
| Fastening | |
| Brake and Direction | back brake |
| Material of the Wheel | polyamide (PA) wheel center |
| Tread | |
| Temperature range | -20°C to +80°C |
| Wheel Diameter | 200mm |
| Load Capacity | 250kg |
| Total Hight | 228mm |
| Width of Tread | 46mm |
| wheel hub Width | 59mm |
| Offset | 55mm |
| Fastening Bolt Hole Diameter | 13mm |
| Swivel Radius | 165mm |
| Wheel Bolt Size | M12 |
| Bushing Diameter | 12mm |
| Weight | 2.38kg |
| Wheel Bearing | double ball bearing |
| Wheel Color | Black and Grey |
| Rubber Shore | 65° Shore A |
