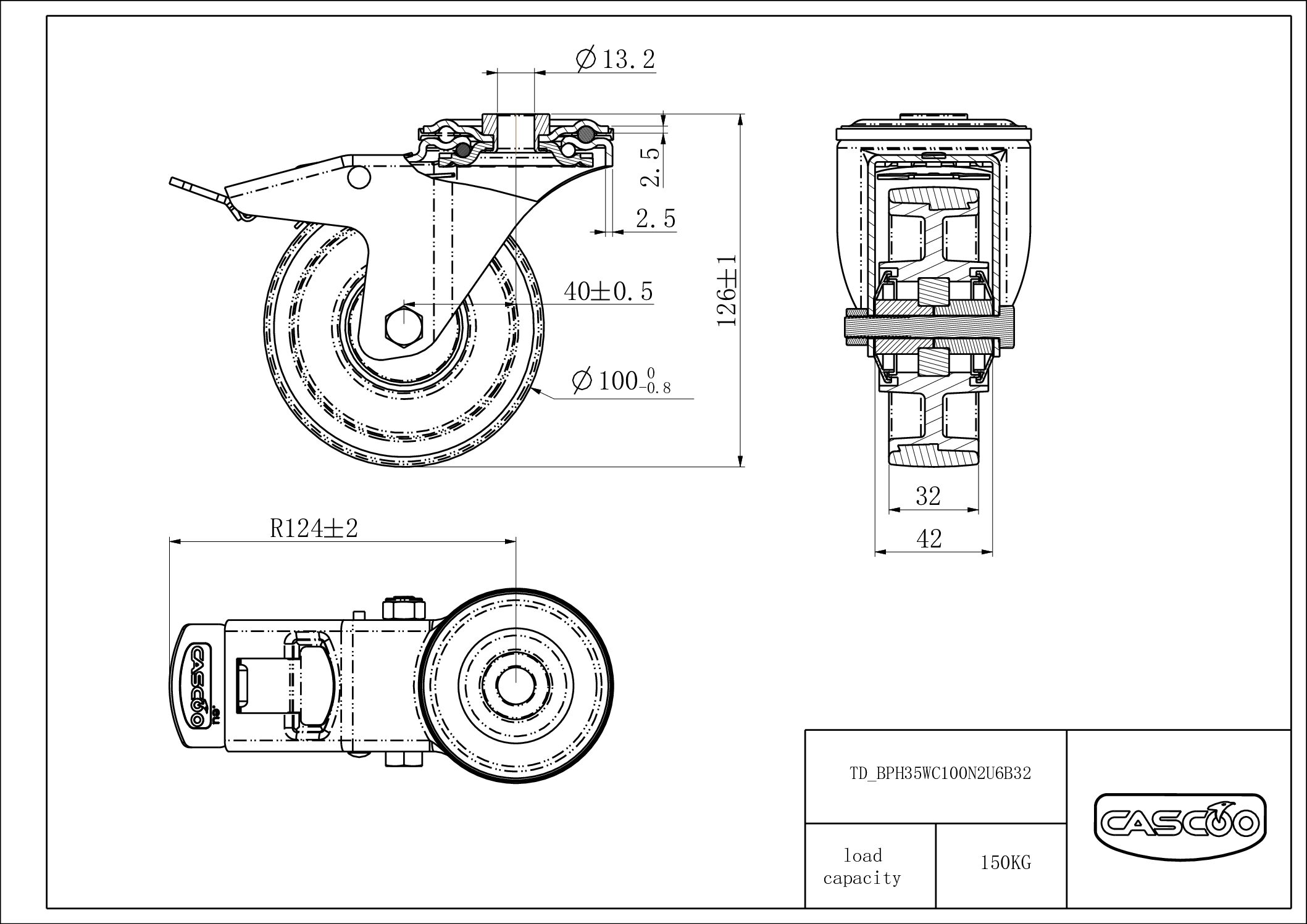

Castor BPH35WC100N2U6B32
Filters Sort results
Reset Apply
back brake, ø100mm, polyamide (PA) wheel center, polyurethane (PU) tread, ball bearing,  |
Add 36,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description
Galvanized sheet steel fork with a ball bearing, fastening by bolt, hole ø13mm, fork with material thickness 2.50mm (fastening) and 2.50mm (fork), inner part of wheel made of polyamide, tread made of thermoplastic polyurethane 95° Shore A, width of the wheel center 40mm, ball bearing, nylon bearing guard.
Additional information
| Product SKU | BPH35WC100N2U6B32 |
|---|---|
| Standard Compliance | DIN EN 12532 |
| Series | N2U6 |
| Fastening | |
| Brake and Direction | back brake |
| Material of the Wheel | polyamide (PA) wheel center |
| Tread | |
| Temperature range | -40°C to +80°C |
| Wheel Diameter | 100mm |
| Load Capacity | 150kg |
| Total Hight | 127mm |
| Width of Tread | 32mm |
| wheel hub Width | 40mm |
| Offset | 40mm |
| Fastening Bolt Hole Diameter | 13mm |
| Swivel Radius | 127mm |
| Wheel Bolt Size | M8 |
| Bushing Diameter | 8mm |
| Weight | 0.76kg |
| Wheel Bearing | ball bearing |
| Wheel Color | Gray and Red |
| Rubber Shore | 95° Shore A |
