Castor BDHHHC0050N4N4P0N
Filters Sort results
Reset Apply
back brake, ø50mm, polyamide (PA) wheel center, polyamide (PA) tread, plain bearing,  |
6,10 € incl. 22% VAT
5,00 € excl. 22% VAT
Available on backorder
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description

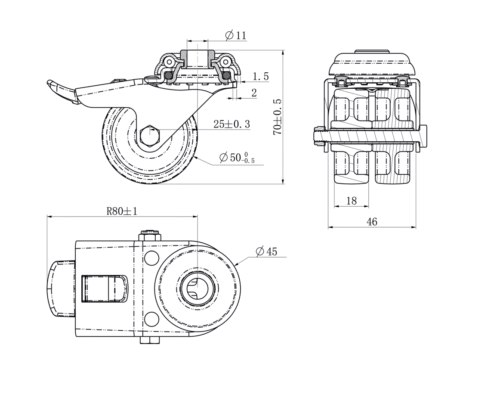

Galvanized sheet steel fork with a ball bearing, fastening by bolt, hole ø11mm, fork with material thickness 1.50mm (fastening) and 2.00mm (fork), wheel made of polyamide, width of the wheel center 44mm, plain bearing.
Additional information
| Product SKU | BDHHHC0050N4N4P0N |
|---|---|
| Standard Compliance | DIN EN 12530 |
| Series | N4N4 |
| Fastening | |
| Brake and Direction | back brake |
| Material of the Wheel | polyamide (PA) wheel center |
| Tread | |
| Temperature range | -20°C to +60°C |
| Wheel Diameter | 50mm |
| Load Capacity | 70kg |
| Total Hight | 70mm |
| Width of Tread | 18mm |
| wheel hub Width | 44mm |
| Offset | 25mm |
| Fastening Bolt Hole Diameter | 11mm |
| Swivel Radius | 80mm |
| Wheel Bolt Size | M6 |
| Bushing Diameter | 8mm |
| Weight | 0.27kg |
| Wheel Bearing | plain bearing |
| Wheel Color | Black |
