Castor TPP31WC125P2D2B32

Filters Sort results
Reset Apply
back brake,
ø125mm,
polypropylene (PP) wheel center,
thermoplastic rubber tread,
ball bearing,
dyn. load capacity
165kg

Add 50,00  more to get free shipping!
Extra Features
  • Stock orders 2-3 days delivery
  • Back orders 7-14 days delivery
  • Free Shipping from 50EUR

Description

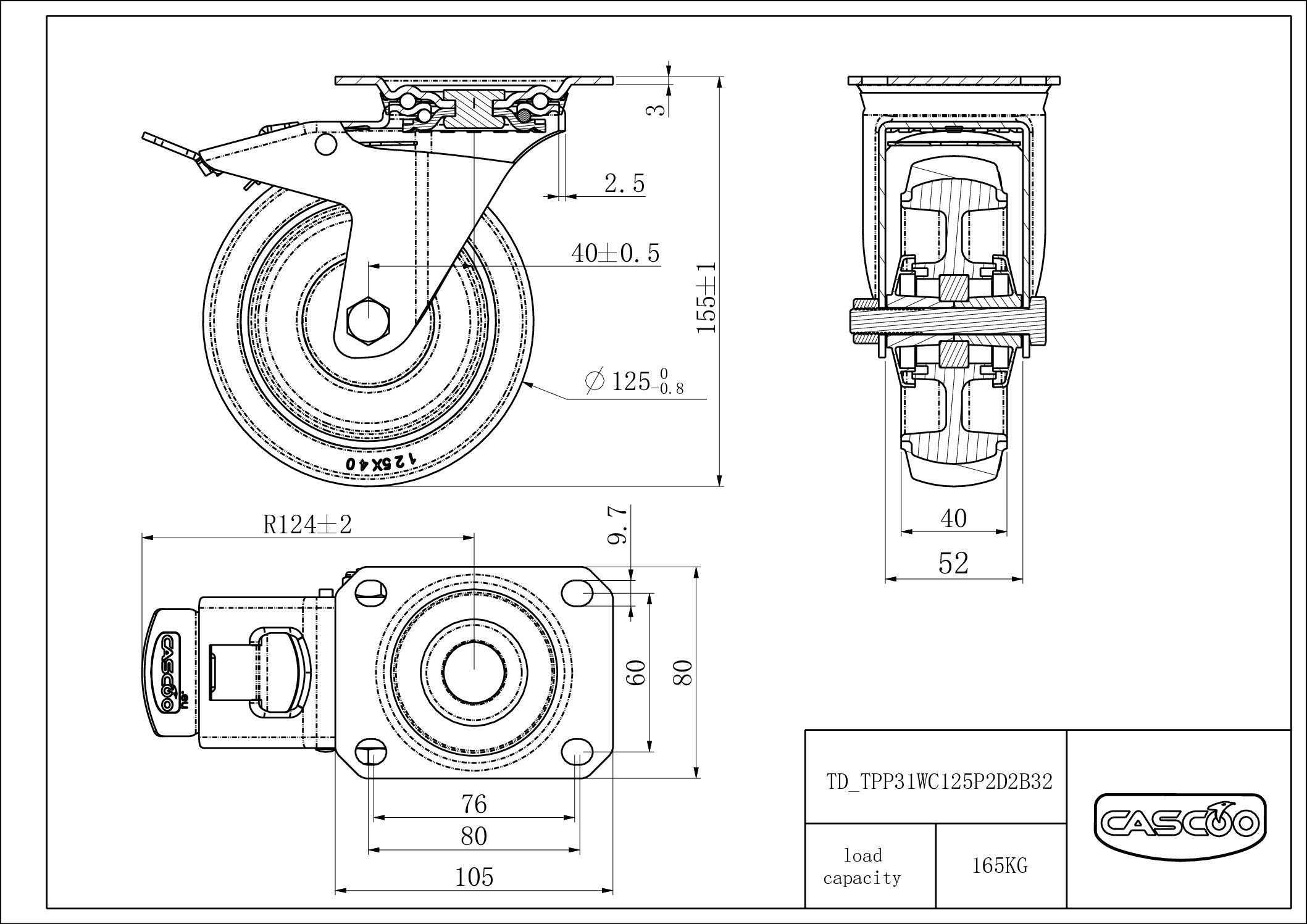

Galvanized sheet steel fork with a ball bearing, fastening by plate with hole spacing 80/77x60mm, fork with material thickness 3.00mm (fastening) and 2.50mm (fork), inner part of wheel made of polypropylene, tread made of thermoplastic rubber 65 – 75° Shore A, width of the wheel center 50mm, ball bearing, nylon bearing guard.

Additional information

Product SKU

TPP31WC125P2D2B32

Standard Compliance

DIN EN 12532

Series

P2D2

Fastening

Brake and Direction

back brake

Material of the Wheel

polypropylene (PP) wheel center

Tread

Temperature range

-20°C to +60°C

Wheel Diameter

125mm

Load Capacity

165kg

Total Hight

155mm

Width of Tread

40mm

wheel hub Width

50mm

Offset

45mm

Dimension of Plate

105x80mm

Hole Spacing of the Plate

80/77x60mm

Swivel Radius

127mm

Wheel Bolt Size

M10

Bushing Diameter

10mm

Weight

1.08kg

Wheel Bearing

ball bearing

Wheel Color

Grey

Rubber Shore

70° Shore A
