Castor TIP36SC125R4E2S34

41,48  incl. 22% VAT
34,00  excl. 22% VAT

Available on backorder

Castor TIP36SC125R4E2S34

Filters Sort results
Reset Apply
back brake,
stainless steel,
ø125mm,
polyamide (PA) wheel center,
elastic tread,
ball bearing,
dyn. load capacity
200kg

41,48  incl. 22% VAT
34,00  excl. 22% VAT

Available on backorder

Add 50,00  more to get free shipping!
Extra Features
  • Stock orders 2-3 days delivery
  • Back orders 7-14 days delivery
  • Free Shipping from 50EUR

Description

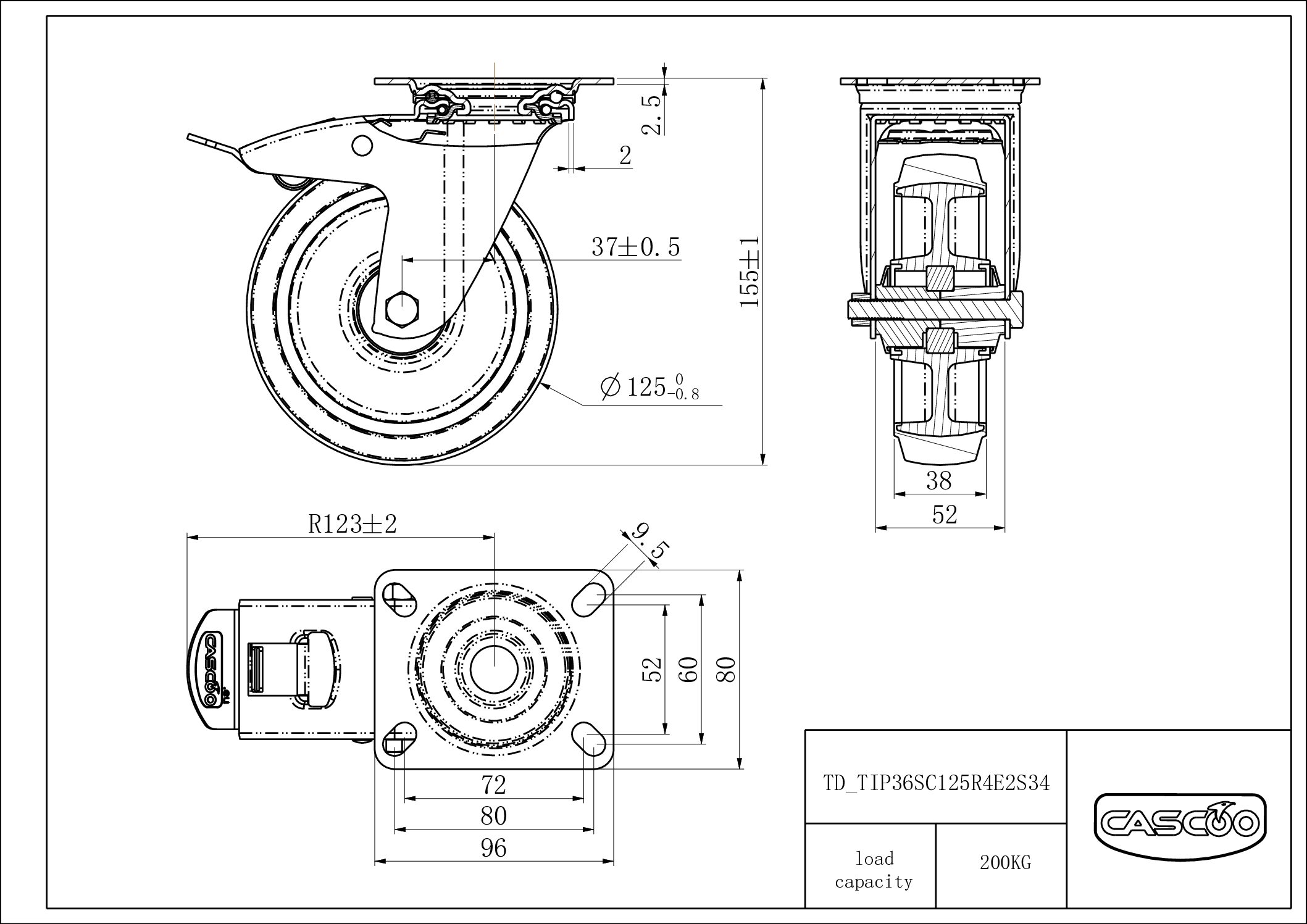

Stainless steel fork with a ball bearing, fastening by plate with hole spacing 80/77x60mm, fork with material thickness 2.50mm (fastening) and 2.00mm (fork), inner part of wheel made of polyamide and tread made of elastic 65° Shore A, width of the wheel center 50mm, ball bearing nylon bearing guard.

Additional information

Product SKU

TIP36SC125R4E2S34

Standard Compliance

DIN EN 12532

Series

R4E2

Fastening

Brake and Direction

back brake

Material of the Wheel

polyamide (PA) wheel center

Tread

Temperature range

-20°C to +80°C

Wheel Diameter

125mm

Load Capacity

200kg

Total Hight

155mm

Width of Tread

38mm

wheel hub Width

50mm

Offset

40mm

Dimension of Plate

96x80mm

Hole Spacing of the Plate

80/77x60mm

Swivel Radius

120mm

Wheel Bolt Size

M8

Bushing Diameter

8mm

Wheel Bearing

ball bearing

Wheel Color

Black and Grey

Special Features

stainless steel
