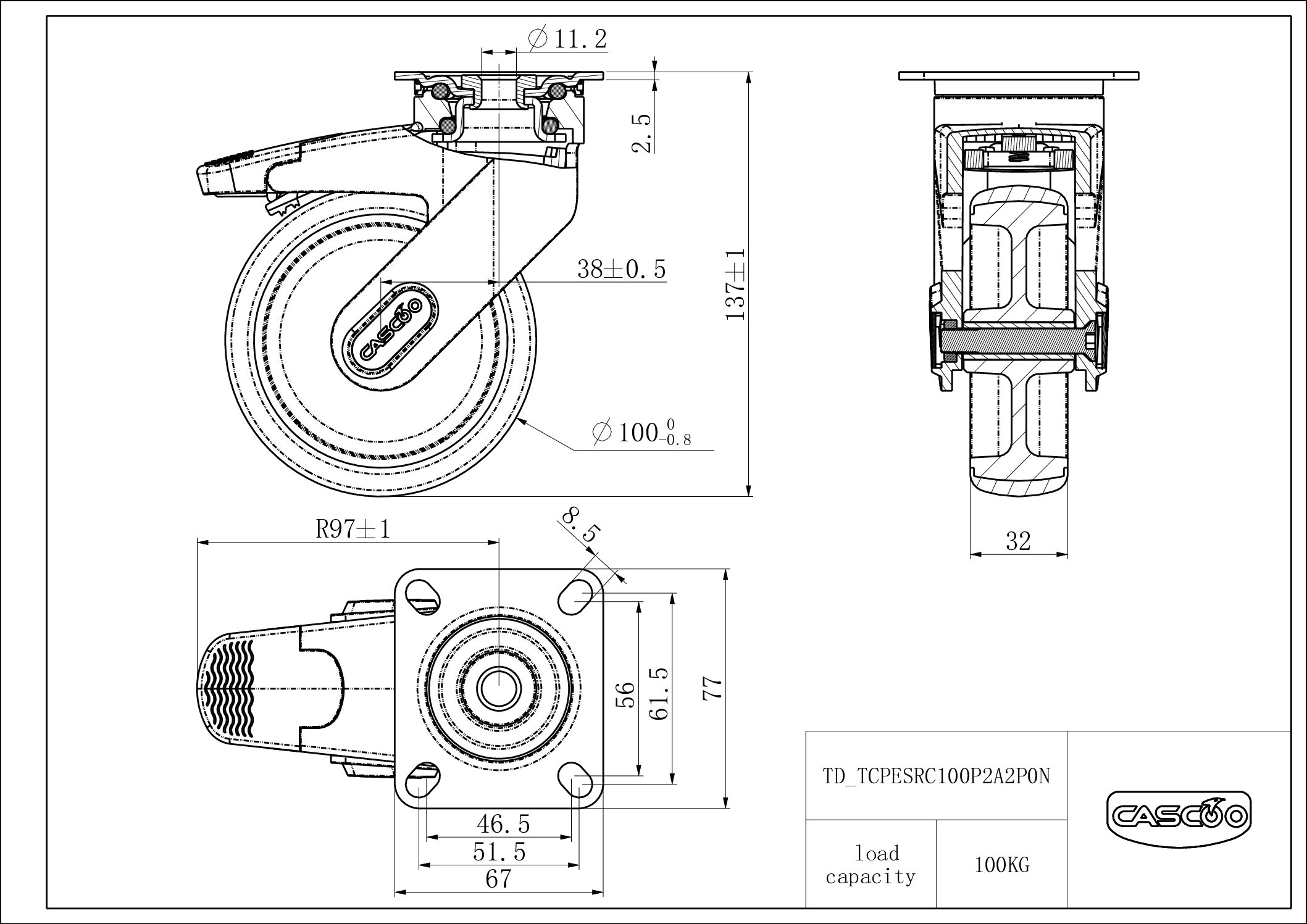

Castor TCPESRC100P2A2P0N
Filters Sort results
Reset Apply
back brake, ø100mm, polypropylene (PP) wheel center, thermoplastic rubber tread, plain bearing,  |
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description
Polyamide fork with ball bearing, fastening by plate with hole spacing 61.5/56×51.5/46.5mm, fork with material thickness 2.50mm (fastening), inner part of wheel made of polypropylene, tread made of thermoplastic rubber 85° Shore A, width of the wheel center 32mm, plain bearing.
Additional information
| Product SKU | TCPESRC100P2A2P0N |
|---|---|
| Standard Compliance | DIN EN 12527 |
| Series | CARA |
| Fastening | |
| Brake and Direction | back brake |
| Material of the Wheel | polypropylene (PP) wheel center |
| Tread | |
| Temperature range | -20°C to +60°C |
| Wheel Diameter | 100mm |
| Load Capacity | 100kg |
| Total Hight | 136mm |
| Width of Tread | 32mm |
| wheel hub Width | 32mm |
| Offset | 38mm |
| Dimension of Plate | 77x67mm |
| Hole Spacing of the Plate | 61.5/56×51.5/46.5mm |
| Swivel Radius | 97mm |
| Wheel Bolt Size | M8 |
| Bushing Diameter | 10mm |
| Wheel Bearing | plain bearing |
| Wheel Color | Grey |
| Rubber Shore | 85° Shore A |
