Castor SHP5EWC150Z0Z0D0N

37,33  incl. 22% VAT
30,60  excl. 22% VAT

Available on backorder

Castor SHP5EWC150Z0Z0D0N

Filters Sort results
Reset Apply
swivel without brake,
ø150mm,
polyamide (PA) wheel center,
polyamide (PA) tread,
double ball bearing,
dyn. load capacity
600kg

37,33  incl. 22% VAT
30,60  excl. 22% VAT

Available on backorder

Add 50,00  more to get free shipping!
Extra Features
  • Stock orders 2-3 days delivery
  • Back orders 7-14 days delivery
  • Free Shipping from 50EUR

Description

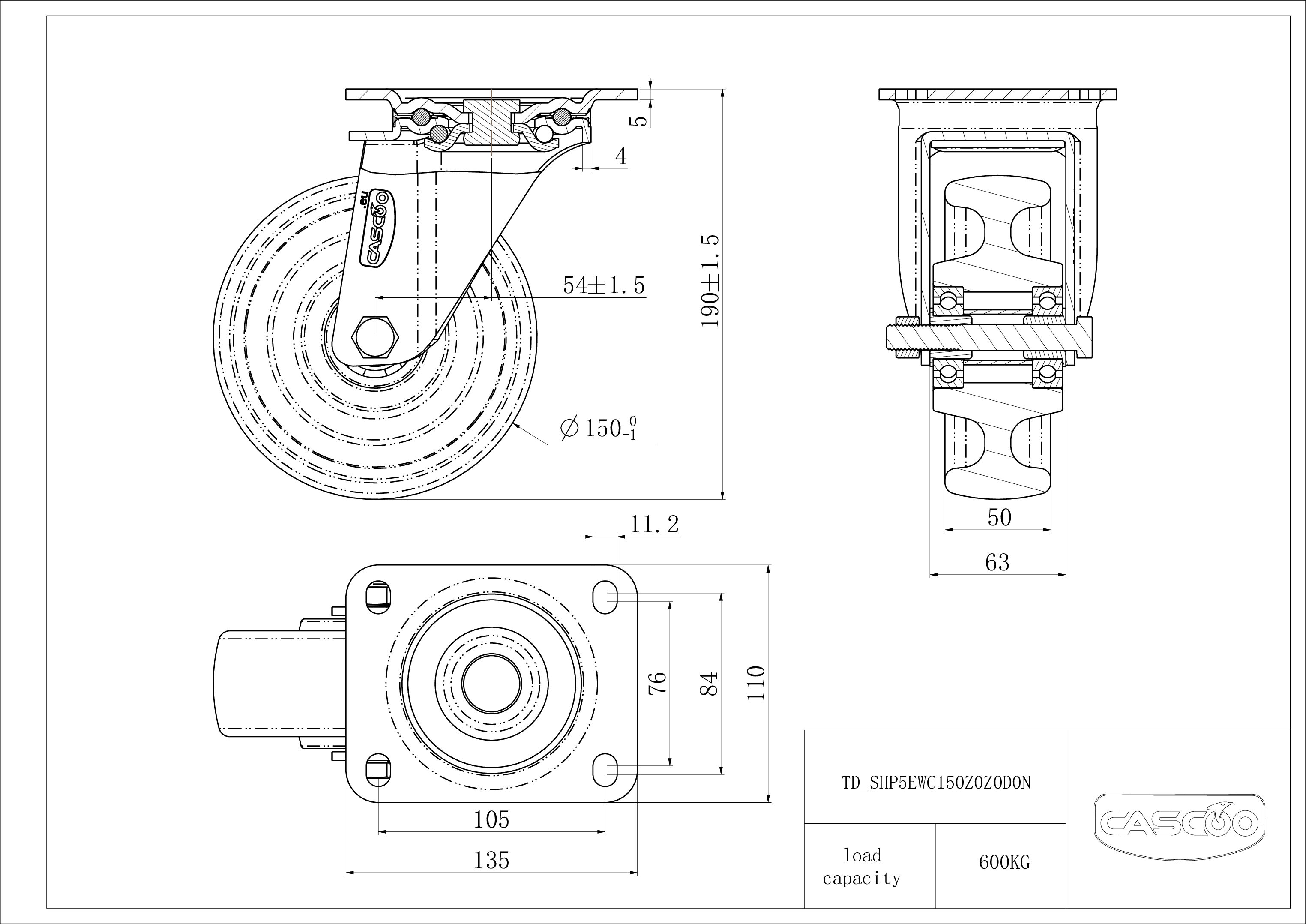

Galvanized sheet steel fork with a ball bearing, fastening by plate with hole spacing 105×84/76mm, fork with material thickness 5.00mm (fastening) and 4.00mm (fork), inner part of wheel made of polyamide and tread made of polyamide , width of the wheel center 60mm, double ball bearing.

Additional information

Product SKU

SHP5EWC150Z0Z0D0N

Standard Compliance

DIN EN 12533

Series

Z0Z0

Fastening

Brake and Direction

swivel without brake

Material of the Wheel

polyamide (PA) wheel center

Tread

Temperature range

-40°C to +80°C

Wheel Diameter

150mm

Load Capacity

600kg

Total Hight

190mm

Width of Tread

50mm

wheel hub Width

60mm

Offset

55mm

Dimension of Plate

135x110mm

Hole Spacing of the Plate

105×84/76mm

Wheel Bolt Size

M12

Bushing Diameter

20mm

Weight

2.41kg

Wheel Bearing

double ball bearing

Wheel Color

White
