Castor SHP5EWC125I2U5D0N
Filters Sort results
Reset Apply
swivel without brake, ø125mm, cast iron wheel center, polyurethane (PU) tread, double ball bearing,  |
50,39 € incl. 22% VAT
41,30 € excl. 22% VAT
Available on backorder
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description

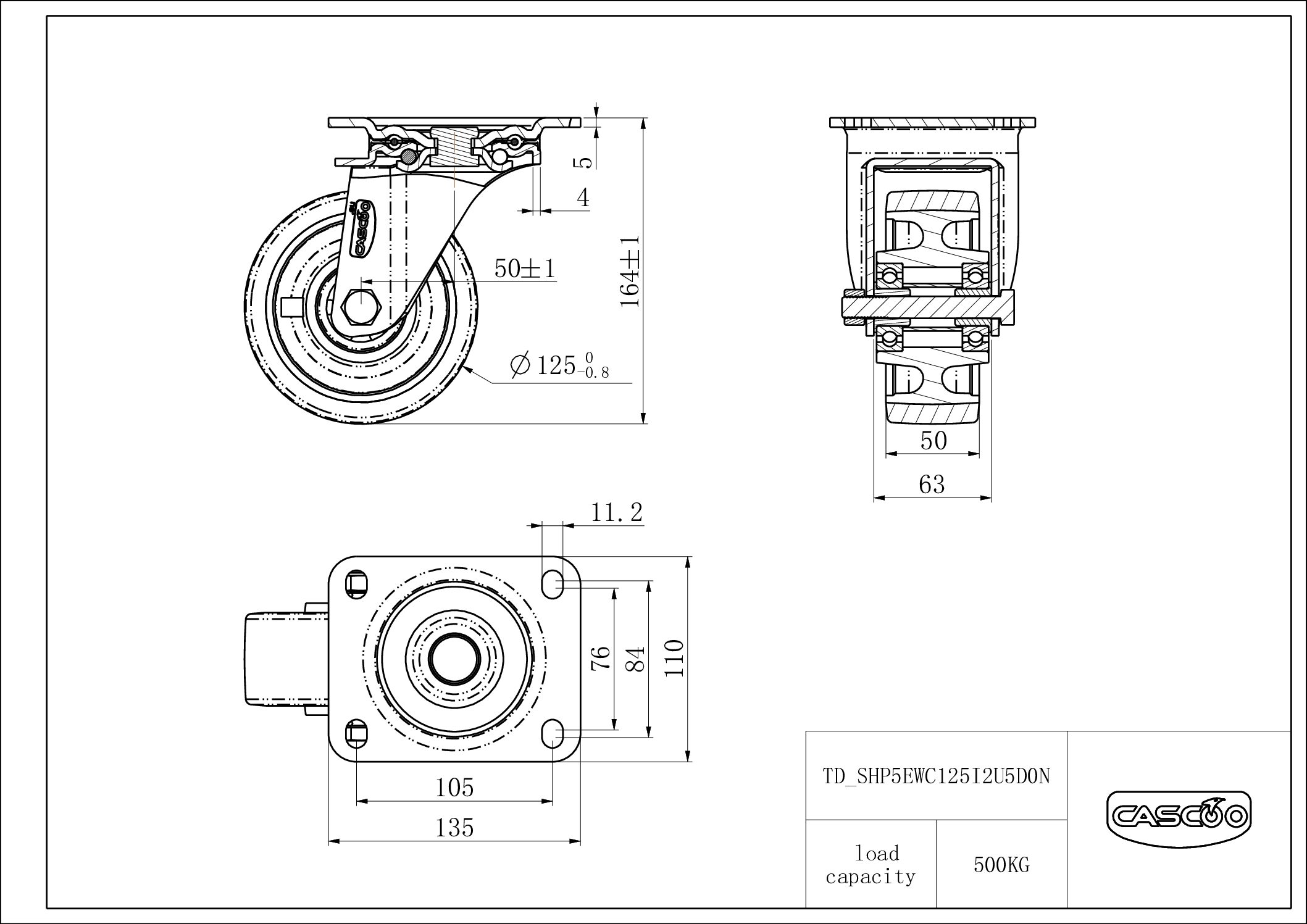

Galvanized sheet steel fork with a ball bearing, fastening by plate with hole spacing 105×84/76mm, fork with material thickness 5.00mm (fastening) and 4.00mm (fork), inner part of wheel made of cast iron and tread made of polyurethane 93° Shore A, width of the wheel center 60mm, double ball bearing.
Additional information
| Product SKU | SHP5EWC125I2U5D0N |
|---|---|
| Standard Compliance | DIN EN 12533 |
| Series | I2U5 |
| Fastening | |
| Brake and Direction | swivel without brake |
| Material of the Wheel | cast iron wheel center |
| Tread | |
| Temperature range | -20°C to +60°C |
| Wheel Diameter | 125mm |
| Load Capacity | 400kg |
| Total Hight | 164mm |
| Width of Tread | 50mm |
| wheel hub Width | 60mm |
| Offset | 50mm |
| Dimension of Plate | 135x110mm |
| Hole Spacing of the Plate | 105×84/76mm |
| Wheel Bolt Size | M12 |
| Bushing Diameter | 20mm |
| Wheel Bearing | double ball bearing |
| Wheel Color | Brown |
| Rubber Shore | 95° Shore A |
