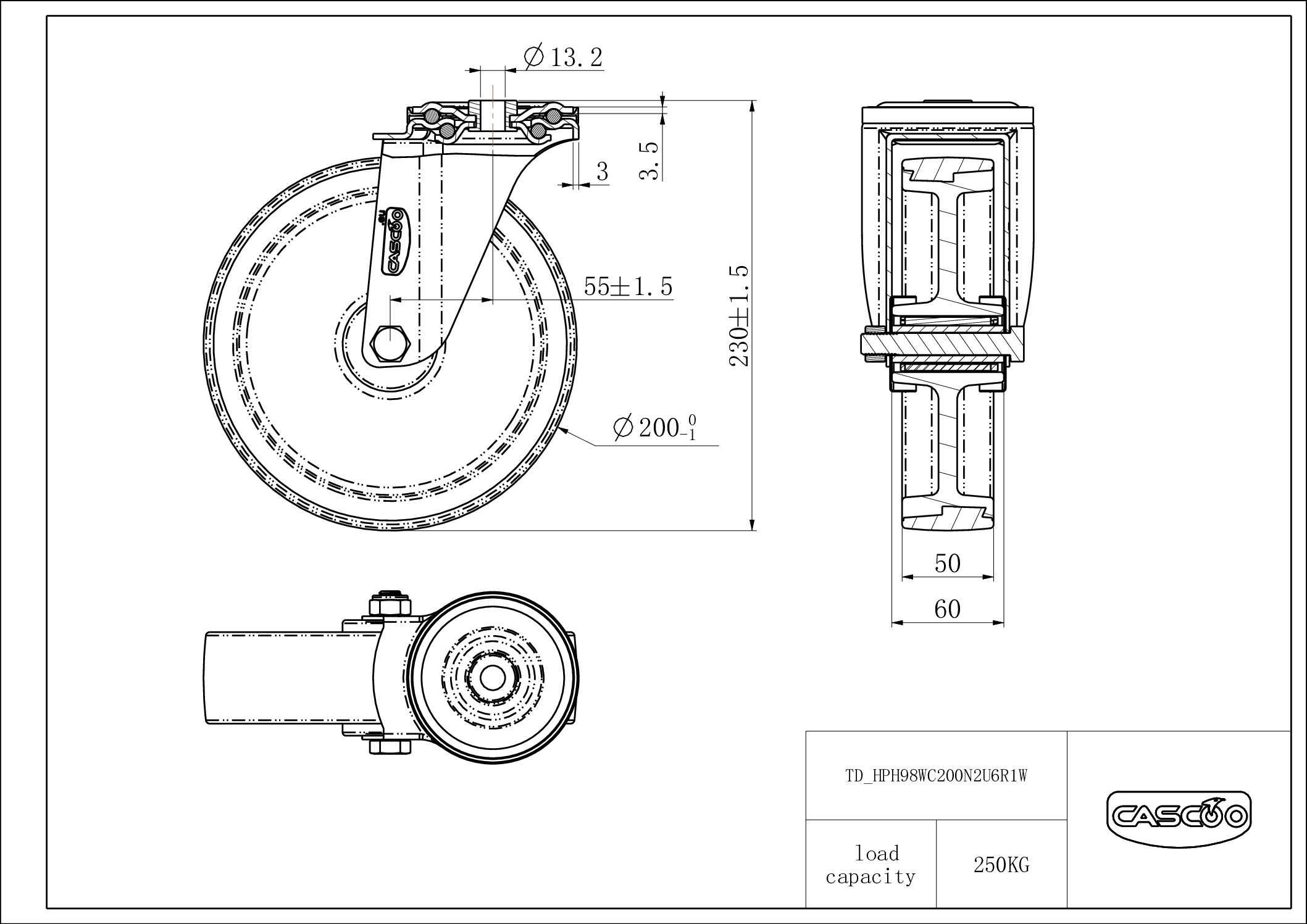

Castor HPH98WC200N2U6R1W
Filters Sort results
Reset Apply
ø200mm, polyamide (PA) wheel center, polyurethane (PU) tread, roller bearing,  |
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description
Galvanized sheet steel fork with a ball bearing, fastening by bolt, hole ø13mm, fork with material thickness 3.50mm (fastening) and 3.00mm (fork), inner part of wheel made of polyamide, tread made of thermoplastic polyurethane 95° Shore A, width of the wheel center 59mm, roller bearing, metal bearing guard.
Additional information
| Product SKU | HPH98WC200N2U6R1W |
|---|---|
| Standard Compliance | DIN EN 12532 |
| Series | N2U6 |
| Fastening | |
| Material of the Wheel | polyamide (PA) wheel center |
| Tread | |
| Temperature range | -40°C to +80°C |
| Wheel Diameter | 200mm |
| Load Capacity | 250kg |
| Total Hight | 228mm |
| Width of Tread | 48mm |
| wheel hub Width | 59mm |
| Offset | 55mm |
| Fastening Bolt Hole Diameter | 13mm |
| Wheel Bolt Size | M12 |
| Bushing Diameter | 20mm |
| Weight | 1.95kg |
| Wheel Bearing | roller bearing |
| Wheel Color | Gray and Red |
| Rubber Shore | 95° Shore A |
