Castor HPH35WC100M6N2B32

Filters Sort results
Reset Apply
ø100mm,
polyamide (PA) wheel center,
polyamide (PA) tread,
ball bearing,
dyn. load capacity
160kg

Add 50,00  more to get free shipping!
Extra Features
  • Stock orders 2-3 days delivery
  • Back orders 7-14 days delivery
  • Free Shipping from 50EUR

Description

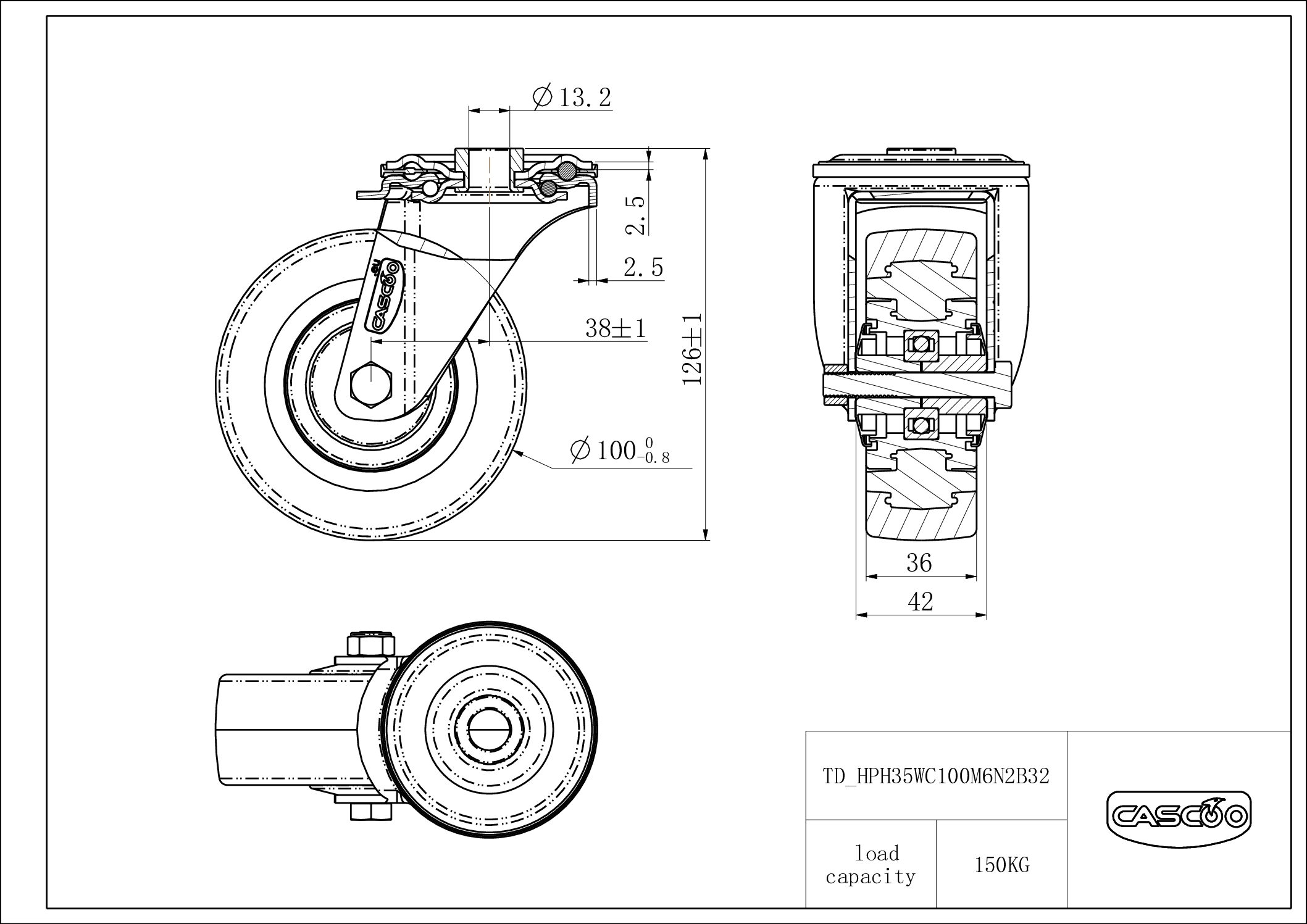

Galvanized sheet steel fork with a ball bearing, fastening by bolt, hole ø13mm, fork with material thickness 2.50mm (fastening) and 2.50mm (fork), inner part of wheel made of polyamide with elastic ringand tread made of polyamide, width of the wheel center 40mm, ball bearing, nylon bearing guard.

Additional information

Product SKU

HPH35WC100M6N2B32

Standard Compliance

DIN EN 12532

Series

M6N2

Fastening

Material of the Wheel

polyamide (PA) wheel center

Tread

Temperature range

-20°C to +80°C

Wheel Diameter

100mm

Load Capacity

160kg

Total Hight

127mm

Width of Tread

36mm

wheel hub Width

40mm

Offset

40mm

Fastening Bolt Hole Diameter

13mm

Wheel Bolt Size

M8

Bushing Diameter

8mm

Wheel Bearing

ball bearing

Wheel Color

Grey and Red
