Castor HIH9OSC160R4E2Q0N
Filters Sort results
Reset Apply
stainless steel, ø160mm, polyamide (PA) wheel center, elastic tread, roller bearing,  |
59,78 € incl. 22% VAT
49,00 € excl. 22% VAT
Available on backorder
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description

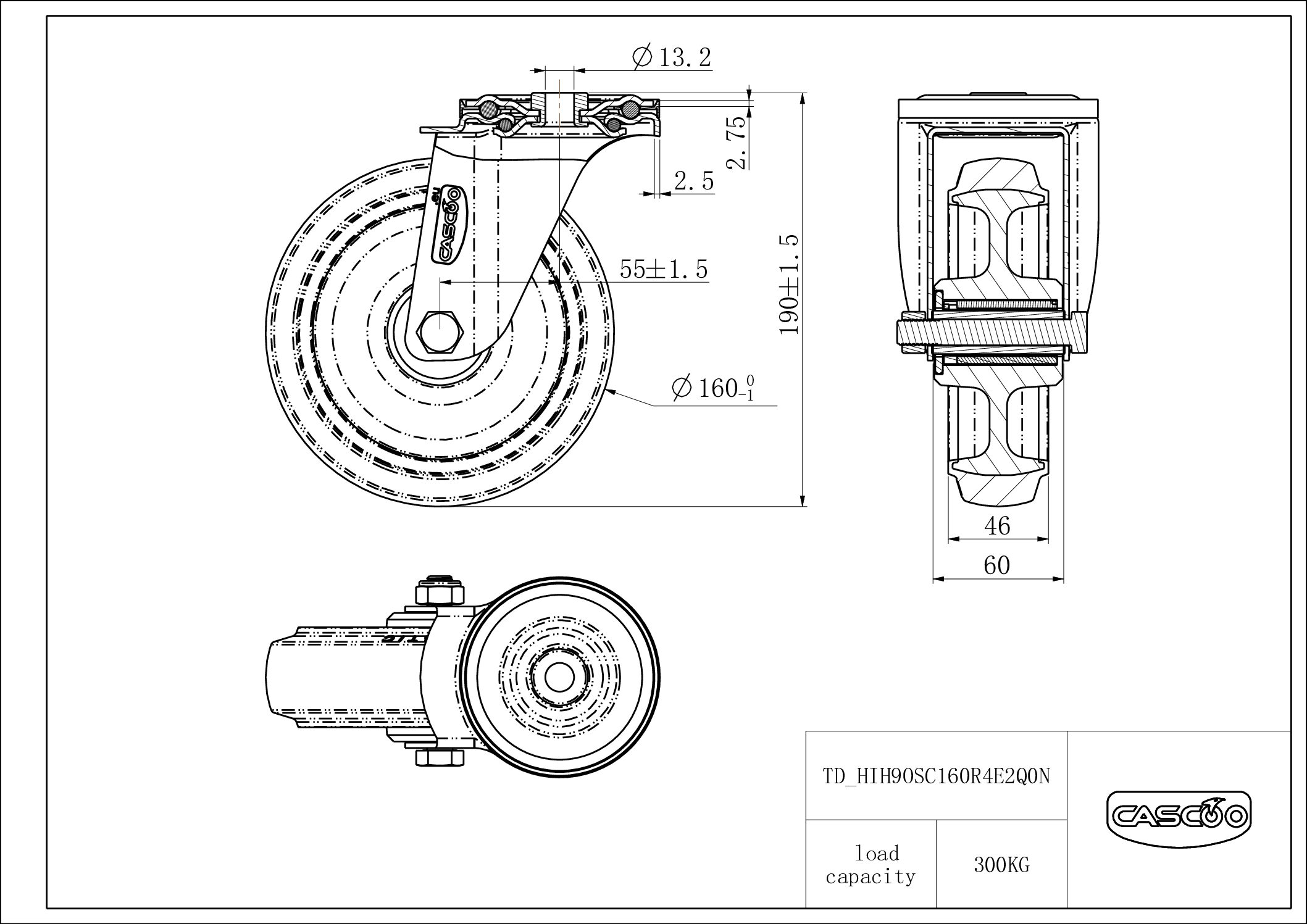

Stainless steel fork with a ball bearing, fastening by bolt, hole ø13mm, fork with material thickness 2.75mm (fastening) and 2.50mm (fork), inner part of wheel made of polyamide and tread made of elastic 65° Shore A, width of the wheel center 59mm, roller bearing without separate bearing guard.
Additional information
| Product SKU | HIH9OSC160R4E2Q0N |
|---|---|
| Standard Compliance | DIN EN 12532 |
| Series | R4E2 |
| Fastening | |
| Material of the Wheel | polyamide (PA) wheel center |
| Tread | |
| Temperature range | -20°C to +80°C |
| Wheel Diameter | 160mm |
| Load Capacity | 300kg |
| Total Hight | 190mm |
| Width of Tread | 50mm |
| wheel hub Width | 59mm |
| Offset | 55mm |
| Fastening Bolt Hole Diameter | 13mm |
| Wheel Bolt Size | M12 |
| Bushing Diameter | 20mm |
| Weight | 1.49kg |
| Wheel Bearing | roller bearing |
| Wheel Color | Black and Grey |
| Special Features | stainless steel |
