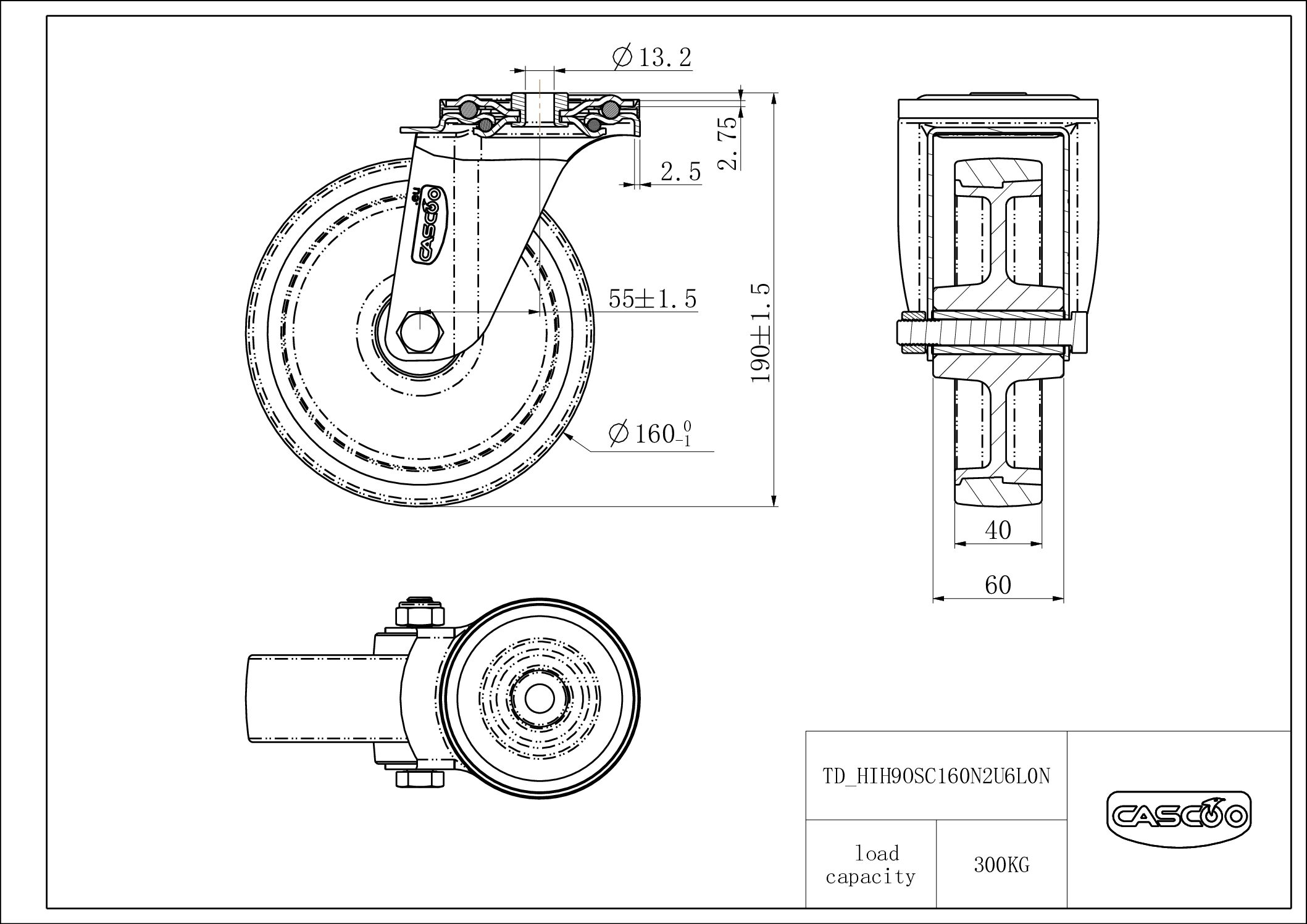

Castor HIH9OSC160N2U6L0N
Filters Sort results
Reset Apply
stainless steel, ø160mm, polyamide (PA) wheel center, polyurethane (PU) tread, plain bearing,  |
61,00 € incl. 22% VAT
50,00 € excl. 22% VAT
Available on backorder
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description
Stainless steel fork with a ball bearing, fastening by bolt, hole ø13mm, fork with material thickness 2.75mm (fastening) and 2.50mm (fork), inner part of wheel made of polyamide, tread made of thermoplastic polyurethane 95° Shore A, width of the wheel center 59mm, plain bearing without separate bearing guard.
Additional information
| Product SKU | HIH9OSC160N2U6L0N |
|---|---|
| Standard Compliance | DIN EN 12532 |
| Series | N2U6 |
| Fastening | |
| Material of the Wheel | polyamide (PA) wheel center |
| Tread | |
| Temperature range | -40°C to +80°C |
| Wheel Diameter | 160mm |
| Load Capacity | 300kg |
| Total Hight | 190mm |
| Width of Tread | 40mm |
| wheel hub Width | 59mm |
| Offset | 55mm |
| Fastening Bolt Hole Diameter | 13mm |
| Wheel Bolt Size | M12 |
| Bushing Diameter | 20mm |
| Weight | 1.31kg |
| Wheel Bearing | plain bearing |
| Wheel Color | Gray and Red |
| Special Features | stainless steel |
