Castor CHP5MWC150Z0Z0D0N
Filters Sort results
Reset Apply
front brake, ø150mm, polyamide (PA) wheel center, polyamide (PA) tread, double ball bearing,  |
90,28 € incl. 22% VAT
74,00 € excl. 22% VAT
Available on backorder
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description

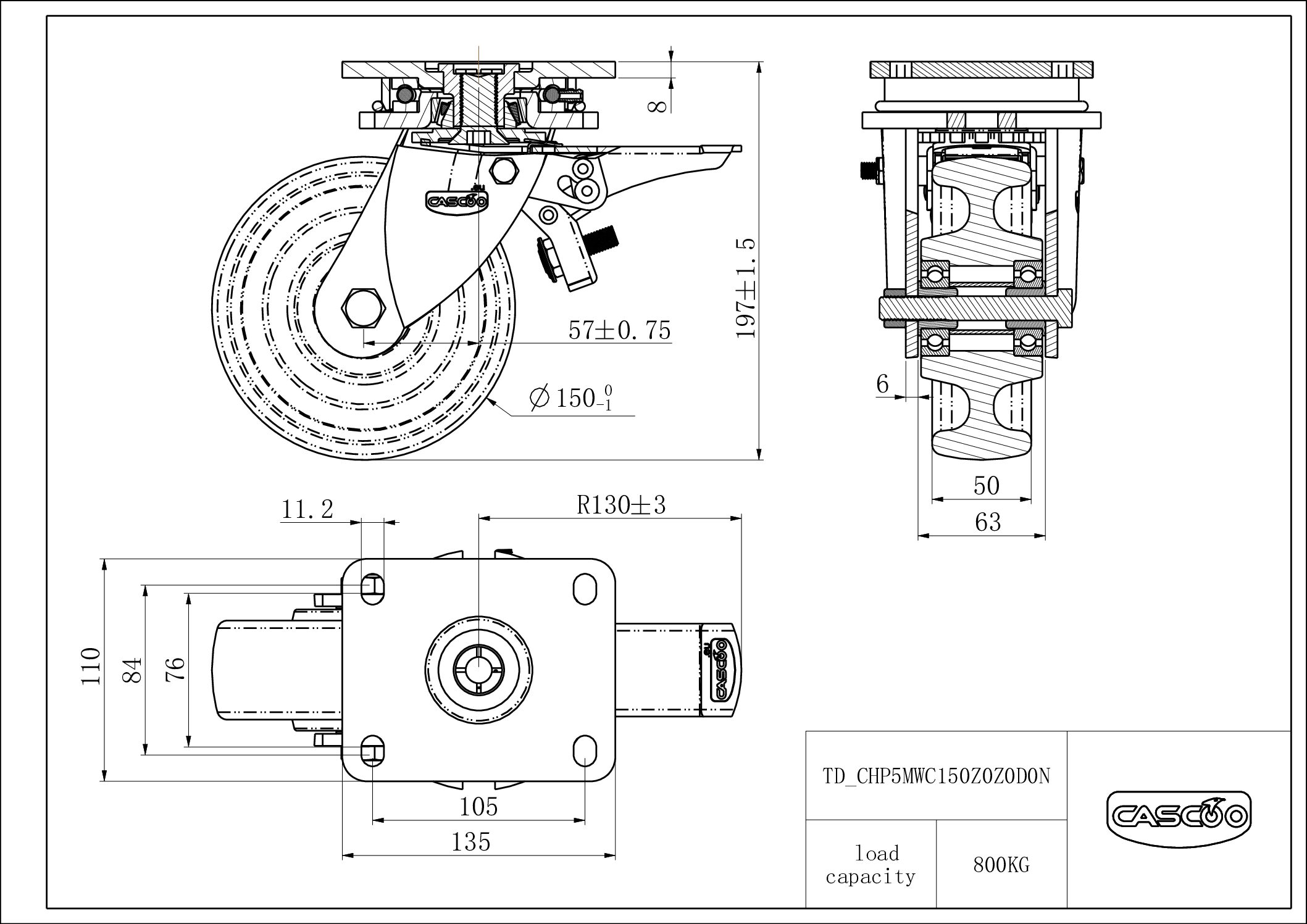

Galvanized sheet steel fork with a ball bearing, fastening by plate with hole spacing 105×84/76mm, fork with material thickness 8.00mm (fastening) and 6.00mm (fork), inner part of wheel made of polyamide and tread made of polyamide , width of the wheel center 60mm, double ball bearing.
Additional information
| Product SKU | CHP5MWC150Z0Z0D0N |
|---|---|
| Standard Compliance | DIN EN 12533 |
| Series | Z0Z0 |
| Fastening | |
| Brake and Direction | front brake |
| Material of the Wheel | polyamide (PA) wheel center |
| Tread | |
| Temperature range | -40°C to +80°C |
| Wheel Diameter | 150mm |
| Load Capacity | 800kg |
| Total Hight | 197mm |
| Width of Tread | 50mm |
| wheel hub Width | 60mm |
| Offset | 57mm |
| Dimension of Plate | 135x110mm |
| Hole Spacing of the Plate | 105×84/76mm |
| Swivel Radius | 135mm |
| Wheel Bolt Size | M12 |
| Bushing Diameter | 20mm |
| Weight | 4.42kg |
| Wheel Bearing | double ball bearing |
| Wheel Color | White |
