Castor BBH35WC100P2D2B32A

Filters Sort results
Reset Apply
back brake,
antistatic,
ø100mm,
polypropylene (PP) wheel center,
thermoplastic rubber tread,
ball bearing,
dyn. load capacity
90kg

Add 50,00  more to get free shipping!
Extra Features
  • Stock orders 2-3 days delivery
  • Back orders 7-14 days delivery
  • Free Shipping from 50EUR

Description

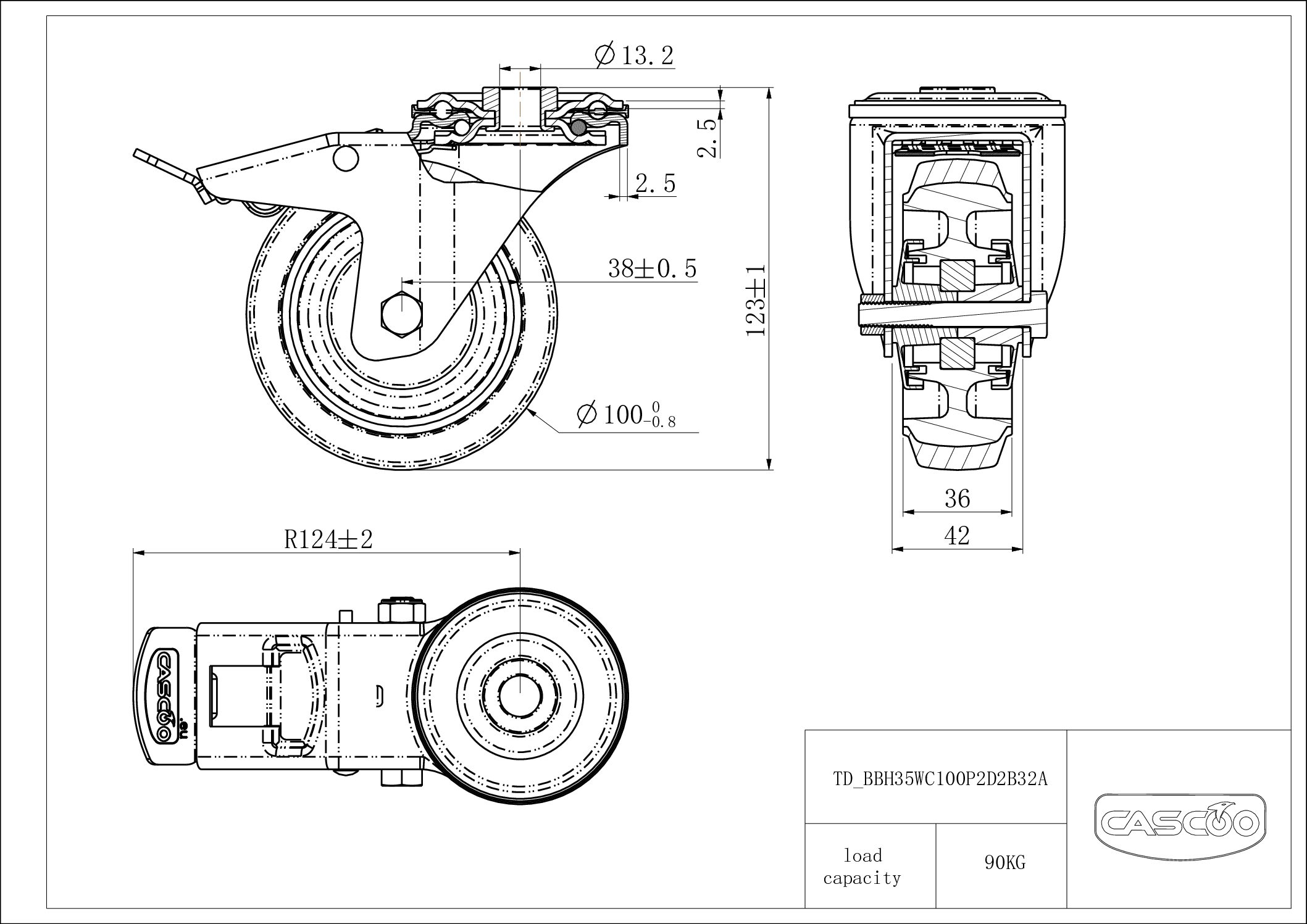

Galvanized sheet steel fork with a ball bearing, fastening by bolt, hole ø13mm, fork with material thickness 2.50mm (fastening) and 2.50mm (fork), inner part of wheel made of polypropylene, antistatic and tread made of thermoplastic rubber 65 – 75° Shore A, antistatic, width of the wheel center 40mm, ball bearing, nylon bearing guard.

Additional information

Product SKU

BBH35WC100P2D2B32A

Standard Compliance

DIN EN 12532

Series

P2D2 (antistatic)

Fastening

Brake and Direction

back brake

Material of the Wheel

polypropylene (PP) wheel center

Tread

Temperature range

-20°C to +60°C

Wheel Diameter

100mm

Load Capacity

90kg

Total Hight

124mm

Width of Tread

35mm

wheel hub Width

40mm

Offset

40mm

Fastening Bolt Hole Diameter

13mm

Swivel Radius

127mm

Wheel Bolt Size

M8

Bushing Diameter

8mm

Weight

0.74kg

Wheel Bearing

ball bearing

Wheel Color

Grey

Special Features

antistatic
