Castor BBH35WC100N0N0R1W
Filters Sort results
Reset Apply
back brake, ø100mm, polyamide (PA) wheel center, polyamide (PA) tread, roller bearing,  |
9,76 € incl. 22% VAT
8,00 € excl. 22% VAT
Available on backorder
Add 50,00 € more to get free shipping!
Extra Features
- Stock orders 2-3 days delivery
- Back orders 7-14 days delivery
- Free Shipping from 50EUR
Description

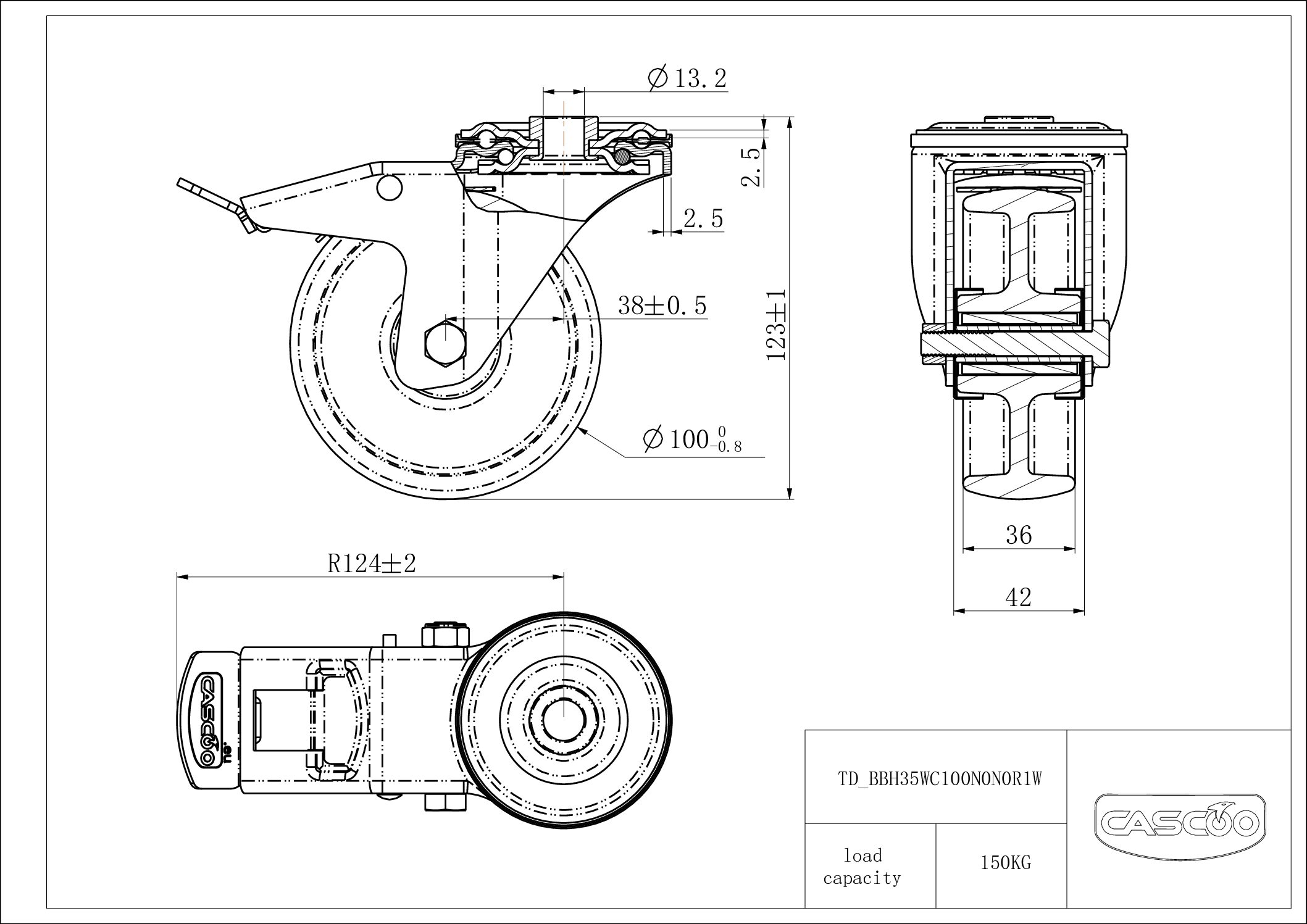

Galvanized sheet steel fork with a ball bearing, fastening by bolt, hole ø13mm, fork with material thickness 2.50mm (fastening) and 2.50mm (fork), wheel made of polyamide, width of the wheel center 40mm, roller bearing, metal bearing guard.
Additional information
| Product SKU | BBH35WC100N0N0R1W |
|---|---|
| Standard Compliance | DIN EN 12532 |
| Series | N0N0 |
| Fastening | |
| Brake and Direction | back brake |
| Material of the Wheel | polyamide (PA) wheel center |
| Tread | |
| Temperature range | -40°C to +80°C |
| Wheel Diameter | 100mm |
| Load Capacity | 150kg |
| Total Hight | 124mm |
| Width of Tread | 36mm |
| wheel hub Width | 40mm |
| Offset | 40mm |
| Fastening Bolt Hole Diameter | 13mm |
| Swivel Radius | 127mm |
| Wheel Bolt Size | M8 |
| Bushing Diameter | 12mm |
| Weight | 0.71kg |
| Wheel Bearing | roller bearing |
| Wheel Color | White |
